Product Details:
|
| Certificate: | ETL1310/FCC | Input Voltage: | 100~240V |
|---|---|---|---|
| Input Frequency: | 50/60HZ | Output Voltage: | 12V |
| Output Current: | 1.5A | Output Power: | 18 W |
| Color: | Black / White | Efficiency: | DOE Level VI |
| High Light: | FCC LED Power Supply Adapter,LED Power Supply Adapter 18W,15V 1A Power Adapter |
||

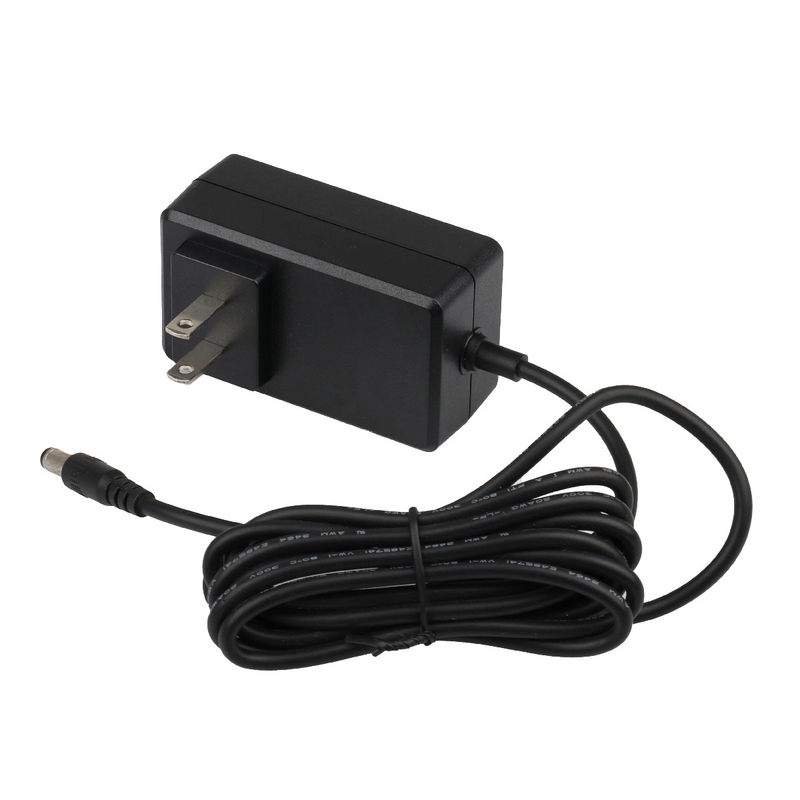

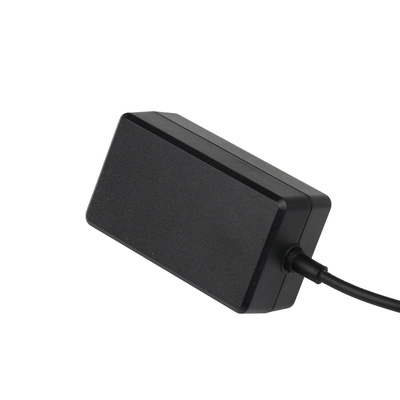

FCC Certifed LED Power Supply Adapter , 12V 1.5A Power Adapter 18W
Description
18W.single-output switch power adapter/lP20 for LED GROW LIGHT.
GQ18 products are our 18W series switching power adapter products, Plug and pins are both fixed and replaceable.
They have excellent performance in temperature rise and EMI.
They meet the US Class VI energy efficiency and the EU CoC Phase 2 energy efficiency requirements.
They have high-precision output OVP, OCP, SCP and other reliable protection functions.
Effectively protect the power supply safety of terminal equipment and the safety of users.
Features
| Model Name | Output Voltage(VDC) | Output Current (A) | Output Power(W ) |
| GQ/BZ18-XXX-YYY-WW | 4.5~7.5 | 0.01~2.50 | 15.00 |
| GB/BZ=ANALOG Company Code | 7.6~11.0 | 0.01~1.80 | 15.00 |
| 18=Out Power 18W Series | 11.1~15.5 | 0.01~1.50 | 18.00 |
| XXX=Output Voltage | 15.6~21.0 | 0.01~1.00 | 19.00 |
| YYY=Output Current | 21.1~27.0 | 0.01~0.85 | 18.00 |
| WW=Plug Type | 27.1~34.0 | 0.01~0.62 | 18.00 |
| 34.1~38.0 | 0.01~0.50 | 18.00 |
Safety Certificate
GQ18 Series ETL Certificate.pdf
Product Model Identification
| GQ/BZ- | 18 | xxx | yyy | ww | z |
| ① | ② | ③ | ④ | ⑤ | ⑥ |
| ① | Company code | ||||
| ② | Output power rating series code | ||||
| ③ | Output voltage code | ||||
| ④ | Output current code | ||||
| ⑤ | Plug Type | ||||
| ⑥ | Appliance | ||||
| For example: Product model GQ18-120125-AU stands for Analog brand swithing adapter with 18W series power,12V output voltage,1.5A Output current, plug type is US front style AC Plug | |||||
| Item | Specification Datasheet Table | Note | |
| Description | Product name | single-output switch power adapter | |
| Product type | Wall mount/Desktop/Interchange | Custom Design Available | |
| Model | GQ18-120150-AU | ||
| Supply Ability | 1,600,000~1,800,000PCS/month | ||
| Application | as per customer requirments,etc | Custom Design Available | |
| Mechanical Performance | Color | Black or White | Custom Design Available |
| Dimensions | Subjected to final design | Custom Design Available | |
| Output DC Connector | 5.5x2.1x10mm optional | Custom Design Available | |
| DC Cord / DC Jack | L=1.2m / 1.5m or Customized | Custom Design Available | |
| Plug type | EU ,UK, US, AU, KC, PSE... | Custom Design Available | |
| Electrical Performance | Output Voltage | 12V | |
| Output Current | 1.5A | ||
| Output Power | 18W | ||
| Output Ripple Voltage | Please refer to the specification datasheet for approval | Custom Design Available | |
| Input Voltage & Frequency | 90VAC~264VAC, 47~63HZ | ||
| Maximum AC Current | Please refer to the specification datasheet for approval | ||
| Input Inrush Current | 40A(RMS) Max, full load tested @AC230V 50HZ | ||
| Efficiency | VI | Custom Design Available | |
| Protection | OVP,OCP,OTP,SCP & Input Protection | ||
| Environmental requirements | Operating Temperature | 0~40 ℃, | |
| Storage Temperature | -40~70 ℃ | ||
| Operating Humidity | 5%~90% Non-condensing | ||
| Storage Humidity | 5%~90% Non-condensing | ||
| Reliability | Warranty | 2 year (about 2.28 years for 24-hour-operation a day) | Custom Design Available |
| MTBF | ＞20,000 hour | ||
| Insulation Resistanc | ＞ 30MΩ@500VDC; 60S | Custom Design Available | |
| Hi-Pot | Meet different safety standard | ||
| Leakage Current | 0.25mA Max, full load tested @AC230V 50HZ | ||
| Compliance with EU directives law & regulations | RoHS,REACH,PAHS | ||
| Safety Standard | Certificate | UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR | Custom Design Available |
| Standards | IEC61558/IEC60335/IEC61347/ETL1310/ IEC62368,GB4943, GB4706,etc... | Custom Design Available | |
| EMC | EN55014-1/EN55014-2 compliance | ||
| ESD | (Air discharge@ 8KV, Contact discharge@ 6KV,(IEC61000-4-2) | Custom Design Available | |
| Surge | ±1KV @ common or different mode | Custom Design Available | |
Optional Plug:UL /GS/BS/SAA/CCC/PSE/EAC
| Plug Type Identification | |||
| Series No. | Plug Type Style | Code | Description |
| A_ | Front style plug | AU | US front style AC Plug |
| AA | Austrialian front style AC Plug | ||
| AG | European front style AC Plug | ||
| AJ | Japanese front style AC Plug | ||
| AK | Korean front style AC Plug | ||
| AB | British front style AC Plug | ||
| AR | Russian front style AC Plug | ||
| AX | Interchangeable front style AC Plug | ||
| AC | Chinese front style AC Plug | ||
| ABS | Singaporean plug(changeable) | ||
| AA1 | Argentina front style AC Plug | ||
| AUM | Mexico front style AC plug | ||
| H_or C_ | Side style plug | HU/CU | US side style AC Plug |
| HA/CA | Austrialian side style AC Plug | ||
| HG/CG | European side style AC Plug | ||
| HJ/CJ | Japanese side style AC Plug | ||
| HK/CK | Korean side style AC Plug | ||
| HB/CB | British side style AC Plug | ||
| HR/CR | Russian side style AC Plug | ||
| HX/CX | Interchangeable side style AC Plug | ||
| HC/CC | Chinese side style AC Plug | ||
| Z_ | Inline style plug | ZU | US inline style AC Plug |
| ZA | Austrialian inline style AC Plug | ||
| ZG | European inline style AC Plug | ||
| ZJ | Japanese inline style AC Plug | ||
| ZK | Korean inline style AC Plug | ||
| ZB | British inline style AC Plug | ||
| ZR | Russian inline style AC Plug | ||
| ZX | Interchangeable inline style AC Plug | ||
| ZC | Chinese inline style AC Plug | ||
| E _ | Applicance type | E1 | Input with type C14/C6 used |
| E2 | Desk-top input with type C8 used | ||
| E3 | Fixed power cord ungrounded | ||
| E4 | Fixed power cord grounded | ||
Safty Standards
CB -------------IEC 61558/60065/60950/60335-1 / 6134 7-1/61347-2-13
U L--------------ETL 131 0/60065/60950/
GS--------------EN 61558-1 /61558-2-16/60335-1/60950/60065/61347-1/61347-2-13
SAA------------AS/N ZS 61558-2-16/60065 ,/60950
PSE-----------J61558;J55014
CCC----------GB4943.1-2011,GB17625.1-2012,GB9254-2008
CE/EMC------------EN55032/55024/55020/55014-1/55014-2/55015/6154 7
FCC------------Part15B
C-Tick------------CISPR14,CISPR22,CISPR13
EAC------------IEC 61347-1/6134 7-2-13
Who are we?
Analog Power Electronic Co., Limited are dedicated to providing reliable quality & flexible service.
Specializing in AC-DC Adapters to the highest quality with full safety approval in both industrial and home appliance products.
Standard modified and customized designs are also available.
A small range of open frame power supplies are also available.
If there is something different you require please feel free to contact us by email sales@analogbz.com as we will consider custom requirements.
