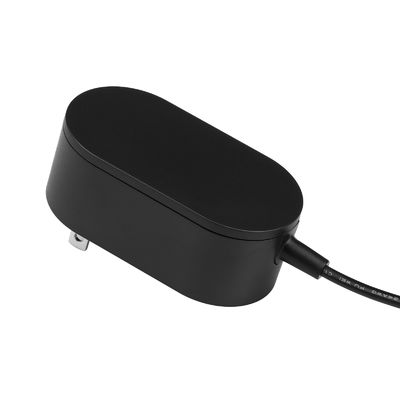

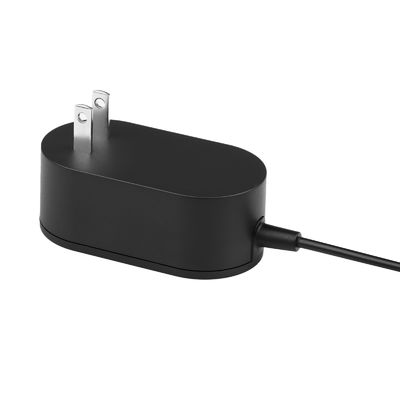

11W DC 22V 500mA Wall Mount Power Adapters High Safety US 2 Prong

11W DC 22V 500mA Wall Mount Power Adapters High Safety US 2 Prong
11W DC 22V 500mA Wall Mount Power Adapters High Safety US 2 Prong
11W DC 22V 500mA Wall Mount Power Adapters High Safety US 2 Prong 11W DC 22V 500mA Wall Mount Power Adapters High Safety US 2 Prong 11W DC 22V 500mA Wall Mount Power Adapters High Safety US 2 Prong 11W DC 22V 500mA Wall Mount Power Adapters High Safety US 2 Prong

Large Image :  11W DC 22V 500mA Wall Mount Power Adapters High Safety US 2 Prong

Product Details:
Place of Origin: China
Brand Name: Analog
Certification: ETL1310 ETL62368 FCC
Model Number: BZ15-220050-AU
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Negotiable
Packaging Details: Carton
Delivery Time: 10-25 work days
Payment Terms: T/T, L/C
Supply Ability: 1,600,000~1,800,000PCS/Month

11W DC 22V 500mA Wall Mount Power Adapters High Safety US 2 Prong

Description
Output: 11W,22V,500mA Efficiency: VI
EU Directive: RoHS, REACH,PAHS Protection: OVP,OCP,OTP,SCP & Input Protection
Warranty: 2 Year (about 2.28 Years For 24-hour-operation A Day) Certificate: UKCA SAA,A-Tick、C-tick、DOFT、QAS、SAI
High Light:

11W 500ma Wall Mount Power Adapters

,

22V 500mA Wall Mount Power Adapters

,

500mA 22 v dc power adapter

11W DC 22V 500mA Wall Mount Power Adapters High Safety US 2 Prong



Features



Model Name Output Voltage(VDC) Output Current (A) Output Power(W )
GQ/BZ15-XXX-YYY-WW 8.4~13.0 0.01~1.6 15.00
GB/BZ=ANALOG Company Code 13.1~18.0 0.01~1.15 15.00
15=Out Power 15W Series 18.1~24.9 0.01~0.8 15.00
XXX=Output Voltage 24 0.01~0.65 15.60
YYY=Output Current 25~32 0.01~0.6 15.00
WW=Plug Type



What's the difference between a "AC adapter" and a "DC adapter"?



The inside of the AC adapter is mainly through the power transformer to complete the conversion and output, and the inside of the DC adapter is composed of a rectifier circuit. At present, the common AC power adapter on the router has a copper core (wire package) inside.





Application: Medical Equipment, Smart Home Appliance, Communications equipment



Application Field Products including but not limited to

Home/Household Appliances

(IEC61558)

Robot Vacuum Cleaner, Floor Cleaning Robots,Window Cleaning Robots,Steam Mops,Electric Mops,Cold-air Cooler,Water Purifier,Air purifier,Dehumidifier, Humidifier,Aroma Diffuser,Mosquito Killer,Ice Maker
Led Lighting(IEC61347) Led Power Supply,Led Driver,Table/Desk Lamp,Led Strip Light,Led Desktop Fan,Grow Light,Led Plant Growth Lamp,OSRAM led,

IT Communications Equipment

(IEC62368=IEC60950+IEC60065)

Router,Switch,Mobile phones,Tablet PC,Network, Radio and Television Equipment,PoE...
Audio Equipment(IEC62368) Speakers,Recording Machine,Microphone
Video Equipment(IEC62368) STB TV box,Computers
Security Device(IEC62368) Monitor,CCTV cameras,

Household and Similar

Electrical Appliances

(IEC60335)

Electrical devices with lithium battery power supply requires battery charge adapter
Power Units( ETL1310) Electronic, electrical, mechanical or electron-mechanical products
Other Industries UAV,Drones,Balance Car,Unicycle,Segway,PS4 Game Players Home Healthcare ,Cash registers/Counting Machine,Counterfeit Detector


Specification Datasheet Table



Item Specification Datasheet Table Note
Description Product name single-output switch power adapter
Product type Wall mount/Desktop/Interchange Custom Design Available
Model BZ15-220050-Au
Supply Ability 1,600,000~1,800,000PCS/month
Application as per customer requirments,etc Custom Design Available
Mechanical Performance Color Black or White Custom Design Available
Dimensions Subjected to final design Custom Design Available
Output DC Connector 5.5x2.1x10mm optional Custom Design Available
DC Cord / DC Jack L=1.2m / 1.5m or Customized Custom Design Available
Plug type EU ,UK, US, AU, KC, PSE... Custom Design Available
Electrical Performance Output Voltage & Frequency 22V
Output Current 500mA
Output Power 11W
Ripple/Noise
300mVp-p Max.
Custom Design Available
Input Voltage & Frequency 90VAC~264VAC, 47~63HZ
Maximum AC Current Please refer to the specification datasheet for approval
Input Inrush Current 40A(RMS) Max, full load tested @AC230V 50HZ
Efficiency VI Custom Design Available
Protection OVP,OCP,OTP,SCP & Input Protection
Environmental requirements Operating Temperature 0~40 ℃,
Storage Temperature -40~70 ℃
Operating Humidity 5%~90% Non-condensing
Storage Humidity 5%~90% Non-condensing
Reliability Warranty 2 year (about 2.28 years for 24-hour-operation a day) Custom Design Available
MTBF >20,000 hour
Insulation Resistanc > 30MΩ@500VDC; 60S Custom Design Available
Hi-Pot Meet different safety standard
Leakage Current 0.25mA Max, full load tested @AC230V 50HZ
Compliance with EU directives law & regulations RoHS,REACH,PAHS
Safety Standard Certificate UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR Custom Design Available
Standards IEC61558/IEC60335/IEC61347/ETL1310/ IEC62368,GB4943, GB4706,etc... Custom Design Available
EMC EN55014-1/EN55014-2 compliance
ESD (Air discharge@ 8KV, Contact discharge@ 6KV,(IEC61000-4-2) Custom Design Available
Surge ±1KV @ common or different mode Custom Design Available



Product Model Identification

GQ/BZ-15  xxx   yyy   ww   z

①         ②   ③     ④    ⑤    ⑥

①Company code for Analog

②Output power rating series code

③Output voltage code

④Output current code

⑤Plug Type

⑥Appliance

For example: Product model BZ15-180050-AU,stands for Analog brand swithing adapter with 15W output power,

22V output voltage,500mA Output current, plug type is USA Plug





11W DC 22V 500mA Wall Mount Power Adapters High Safety US 2 Prong 0



Plug Type Identification
Series No. Plug Type Style Code Description
A_ Front style plug AU US front style AC Plug
AA Austrialian front style AC Plug
AG European front style AC Plug
AJ Japanese front style AC Plug
AK Korean front style AC Plug
AB British front style AC Plug
AR Russian front style AC Plug
AX Interchangeable front style AC Plug
AC Chinese front style AC Plug
ABS Singaporean plug(changeable)
AA1 Argentina front style AC Plug
AUM Mexico front style AC plug
H_or C_ Side style plug HU/CU US side style AC Plug
HA/CA Austrialian side style AC Plug
HG/CG European side style AC Plug
HJ/CJ Japanese side style AC Plug
HK/CK Korean side style AC Plug
HB/CB British side style AC Plug
HR/CR Russian side style AC Plug
HX/CX Interchangeable side style AC Plug
HC/CC Chinese side style AC Plug
Z_ Inline style plug ZU US inline style AC Plug
ZA Austrialian inline style AC Plug
ZG European inline style AC Plug
ZJ Japanese inline style AC Plug
ZK Korean inline style AC Plug
ZB British inline style AC Plug
ZR Russian inline style AC Plug
ZX Interchangeable inline style AC Plug
ZC Chinese inline style AC Plug
E _ Applicance type E1 Input with type C14/C6 used
E2 Desk-top input with type C8 used
E3 Fixed power cord ungrounded
E4 Fixed power cord grounded
