Product Details:
|
| Output Power: | 18 W | Output Voltage: | 12V |
|---|---|---|---|
| Output Current: | 1.5A | Input Voltage: | 100~240V |
| Input Frequency: | 50/60HZ | Certificate: | GS/CE/EMC/LVD/EN61347 |
| Power Factor: | PF ＞0.7 | ||
| Highlight: | Switching 18 watt power supply,12V 1.5A 18 watt power supply,12V 1.5A 18 watt ac adapter |
||

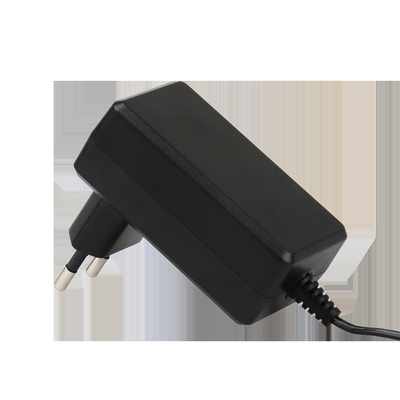

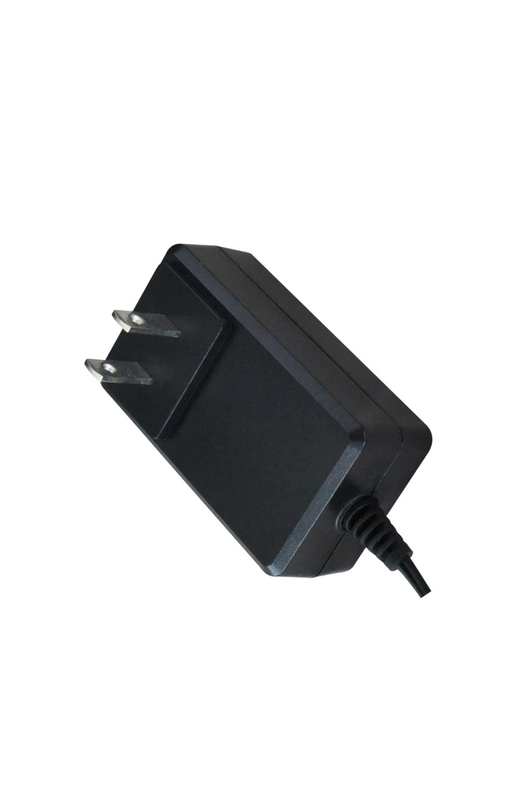

Switching 18 Watt Power Supply 12V 1.5A For LED Desk Lamps
Model Features GQ18-120150-AG
| Model Name | Output Voltage(VDC) | Output Current (A) | Output Power(W ) |
| GQ/BZ18-XXX-YYY-WW | 4.5~7.5 | 0.01~2.50 | 15.00 |
| GB/BZ=ANALOG Company Code | 7.6~11.0 | 0.01~1.80 | 15.00 |
| 18=Out Power 18W Series | 11.1~15.5 | 0.01~1.50 | 18.00 |
| XXX=Output Voltage | 15.6~21.0 | 0.01~1.00 | 19.00 |
| YYY=Output Current | 21.1~27.0 | 0.01~0.85 | 18.00 |
| WW=Plug Type | 27.1~34.0 | 0.01~0.62 | 18.00 |
| 34.1~38.0 | 0.01~0.50 | 18.00 |
Application
| Application Field | Products including but not limited to |
|
Home/Household Appliances (IEC61558) |
Robot Vacuum Cleaner, Floor Cleaning Robots,Window Cleaning Robots,Steam Mops,Electric Mops,Cold-air Cooler,Water Purifier,Air purifier,Dehumidifier, Humidifier,Aroma Diffuser,Mosquito Killer,Ice Maker |
| Led Lighting(IEC61347) | Led Power Supply,Led Driver,Table/Desk Lamp,Led Strip Light,Led Desktop Fan,Grow Light,Led Plant Growth Lamp,OSRAM led, |
|
IT Communications Equipment (IEC62368=IEC60950+IEC60065) |
Router,Switch,Mobile phones,Tablet PC,Network, Radio and Television Equipment,PoE... |
| Audio Equipment(IEC62368) | Speakers,Recording Machine,Microphone |
| Video Equipment(IEC62368) | STB TV box,Computers |
| Security Device(IEC62368) | Monitor,CCTV cameras, |
|
Household and Similar Electrical Appliances (IEC60335) |
Electrical devices with lithium battery power supply requires battery charge adapter |
| Power Units( ETL1310) | Electronic, electrical, mechanical or electron-mechanical products |
| Other Industries | UAV,Drones,Balance Car,Unicycle,Segway,PS4 Game Players Home Healthcare ,Cash registers/Counting Machine,Counterfeit Detector |
GQ18 Series CE Certificate.pdf
GQ18 Series LVD Certificate.pdf
Product Model Identification
| GQ/BZ- | 18 | xxx | yyy | ww | z |
| ① | ② | ③ | ④ | ⑤ | ⑥ |
| ① | Company code | ||||
| ② | Output power rating series code | ||||
| ③ | Output voltage code | ||||
| ④ | Output current code | ||||
| ⑤ | Plug Type | ||||
| ⑥ | Appliance | ||||
| For example: Product model No.:GQ18-120150-AG stands for Analog brand swithing adapter with 18W series power,12V output voltage,1.5A Output current, plug type is EU front style AC Plug | |||||
| Item | Specification Datasheet Table | Note | |
| Description | Product name | single-output switch power adapter | |
| Product type | Wall mount/Desktop/Interchange | Custom Design Available | |
| Model | GQ12-120100-AG | ||
| Supply Ability | 1,600,000~1,800,000PCS/month | ||
| Application | as per customer requirments,etc | Custom Design Available | |
| Mechanical Performance | Color | Black or White | Custom Design Available |
| Dimensions | Subjected to final design | Custom Design Available | |
| Output DC Connector | 5.5x2.1x10mm optional | Custom Design Available | |
| DC Cord / DC Jack | L=1.2m / 1.5m or Customized | Custom Design Available | |
| Plug type | EU ,UK, US, AU, KC, PSE... | Custom Design Available | |
| Electrical Performance | Output Voltage | 12V | |
| Output Current | 1.5A | ||
| Output Power | 18W | ||
| Output Ripple Voltage | Please refer to the specification datasheet for approval | Custom Design Available | |
| Input Voltage & Frequency | 90VAC~264VAC, 47~63HZ | ||
| Maximum AC Current | Please refer to the specification datasheet for approval | ||
| Input Inrush Current | 40A(RMS) Max, full load tested @AC230V 50HZ | ||
| Efficiency | VI | Custom Design Available | |
| Protection | OVP,OCP,OTP,SCP & Input Protection | ||
| Environmental requirements | Operating Temperature | 0~40 ℃, | |
| Storage Temperature | -40~70 ℃ | ||
| Operating Humidity | 5%~90% Non-condensing | ||
| Storage Humidity | 5%~90% Non-condensing | ||
| Reliability | Warranty | 2 year (about 2.28 years for 24-hour-operation a day) | Custom Design Available |
| MTBF | ＞20,000 hour | ||
| Insulation Resistanc | ＞ 30MΩ@500VDC; 60S | Custom Design Available | |
| Hi-Pot | Meet different safety standard | ||
| Leakage Current | 0.25mA Max, full load tested @AC230V 50HZ | ||
| Compliance with EU directives law & regulations | RoHS,REACH,PAHS | ||
| Safety Standard | Certificate | UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR | Custom Design Available |
| Standards | IEC61558/IEC60335/IEC61347/ETL1310/ IEC62368,GB4943, GB4706,etc... | Custom Design Available | |
| EMC | EN55014-1/EN55014-2 compliance | ||
| ESD | (Air discharge@ 8KV, Contact discharge@ 6KV,(IEC61000-4-2) | Custom Design Available | |
| Surge | ±1KV @ common or different mode | Custom Design Available | |
Optional Plug:UL /GS/BS/SAA/CCC/PSE/EAC
| Plug Type Identification | |||
| Series No. | Plug Type Style | Code | Description |
| A_ | Front style plug | AU | US front style AC Plug |
| AA | Austrialian front style AC Plug | ||
| AG | European front style AC Plug | ||
| AJ | Japanese front style AC Plug | ||
| AK | Korean front style AC Plug | ||
| AB | British front style AC Plug | ||
| AR | Russian front style AC Plug | ||
| AX | Interchangeable front style AC Plug | ||
| AC | Chinese front style AC Plug | ||
| ABS | Singaporean plug(changeable) | ||
| AA1 | Argentina front style AC Plug | ||
| AUM | Mexico front style AC plug | ||
| H_or C_ | Side style plug | HU/CU | US side style AC Plug |
| HA/CA | Austrialian side style AC Plug | ||
| HG/CG | European side style AC Plug | ||
| HJ/CJ | Japanese side style AC Plug | ||
| HK/CK | Korean side style AC Plug | ||
| HB/CB | British side style AC Plug | ||
| HR/CR | Russian side style AC Plug | ||
| HX/CX | Interchangeable side style AC Plug | ||
| HC/CC | Chinese side style AC Plug | ||
| Z_ | Inline style plug | ZU | US inline style AC Plug |
| ZA | Austrialian inline style AC Plug | ||
| ZG | European inline style AC Plug | ||
| ZJ | Japanese inline style AC Plug | ||
| ZK | Korean inline style AC Plug | ||
| ZB | British inline style AC Plug | ||
| ZR | Russian inline style AC Plug | ||
| ZX | Interchangeable inline style AC Plug | ||
| ZC | Chinese inline style AC Plug | ||
| E _ | Applicance type | E1 | Input with type C14/C6 used |
| E2 | Desk-top input with type C8 used | ||
| E3 | Fixed power cord ungrounded | ||
| E4 | Fixed power cord grounded | ||
Safty Standards
CB -------------IEC 61558/60065/60950/60335-1 / 6134 7-1/61347-2-13
U L--------------ETL 131 0/60065/60950/
GS--------------EN 61558-1 /61558-2-16/60335-1/60950/60065/61347-1/61347-2-13
SAA------------AS/N ZS 61558-2-16/60065 ,/60950
PSE-----------J61558;J55014
CCC----------GB4943.1-2011,GB17625.1-2012,GB9254-2008
CE/EMC------------EN55032/55024/55020/55014-1/55014-2/55015/6154 7
FCC------------Part15B
C-Tick------------CISPR14,CISPR22,CISPR13
EAC------------IEC 61347-1/6134 7-2-13
