Product Details:
|
| Output Power: | 6W | Output Voltage: | 12Vdc |
|---|---|---|---|
| Output Current: | 0.5A | Operating Temperature: | 0~40 ℃ |
| MTBF: | ＞20,000 Hour | Materail: | PC |
| High Light: | 6W switching mode power supply adaptor,ac switching mode power supply adaptor,switching adapter 12v |
||

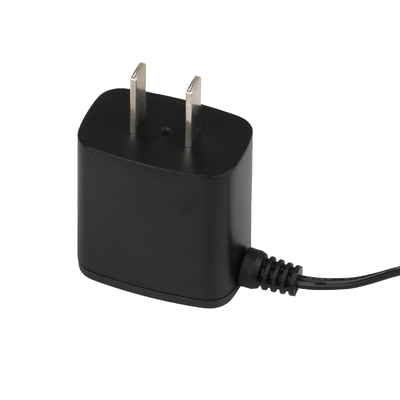

switching power adaptor 12v Suitable For Robot Sweeper under UL safety
Features:
-GQ06 is belong to our 6W series switching power adapter products, the maximum power can reach 7.5W output .
-The pins are both fixed and replaceable. They have excellent performance in temperature rise and EMI.
-They meet the US Class VI energy efficiency and the EU CoC Phase 2 energy efficiency requirements.
-They have high-precision output OVP, OCP, OTP,SCP and other reliable protection functions.
-Effectively protect the power supply safety of terminal equipment and the safety of users.
| Item | Specification Datasheet Table | Note | |
| Description | Product name | single-output switch power adapter | |
| Product type | Wall mount/Desktop/Interchange | Custom Design Available | |
| Model | GQ06-120050-ZU | ||
| Supply Ability | 1,600,000~1,800,000PCS/month | ||
| Application | as per customer requirments,etc | Custom Design Available | |
| Mechanical Performance | Color | Black or White | Custom Design Available |
| Dimensions | Subjected to final design | Custom Design Available | |
| Output DC Connector | 5.5x2.1x10mm optional | Custom Design Available | |
| DC Cord / DC Jack | L=1.2m / 1.5m or Customized | Custom Design Available | |
| Plug type | EU ,UK, US, AU, KC, PSE... | Custom Design Available | |
| Electrical Performance | Output Voltage | 14V | |
| Output Current | 0.5A | ||
| Output Power | 7W | ||
| Output Ripple Voltage | Please refer to the specification datasheet for approval | Custom Design Available | |
| Input Voltage & Frequency | 90VAC~264VAC, 47~63HZ | ||
| Maximum AC Current | Please refer to the specification datasheet for approval | ||
| Input Inrush Current | 40A(RMS) Max, full load tested @AC230V 50HZ | ||
| Efficiency | VI | Custom Design Available | |
| Protection | OVP,OCP,OTP,SCP & Input Protection | ||
| Environmental requirements | Operating Temperature | 0~40 ℃, | |
| Storage Temperature | -40~70 ℃ | ||
| Operating Humidity | 5%~90% Non-condensing | ||
| Storage Humidity | 5%~90% Non-condensing | ||
| Reliability | Warranty | 2 year (about 2.28 years for 24-hour-operation a day) | Custom Design Available |
| MTBF | ＞20,000 hour | ||
| Insulation Resistanc | ＞ 30MΩ@500VDC; 60S | Custom Design Available | |
| Hi-Pot | Meet different safety standard | ||
| Leakage Current | 0.25mA Max, full load tested @AC230V 50HZ | ||
| Compliance with EU directives law & regulations | RoHS,REACH,PAHS | ||
| Safety Standard | Certificate | UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR | Custom Design Available |
| Standards | IEC61558/IEC60335/IEC61347/ETL1310/ IEC62368,GB4943, GB4706,etc... | Custom Design Available | |
| EMC | Part 15 compliance | ||
| ESD | (Air discharge@ 8KV, Contact discharge@ 6KV,(IEC61000-4-2) | Custom Design Available | |
| Surge | ±1KV @ common or different mode | Custom Design Available | |
Optional Plug:UL /GS/BS/SAA/CCC/PSE/EAC
Output Features:
| Output Voltage | Output Current | Output Power |
| 3.0Vdc-6.0Vdc | 0.01A-1.2A | 6.0W Max |
| 6.1Vdc-9.9Vdc | 0.01A-1.0A | 6.0W Max |
| 10.0Vdc-15Vdc | 0.01A-0.5A | 7.5W Max |
| 15Vdc-24Vdc | 0.01A-0.4A | 6W Max |
FAQ
1. What safety certificate do you have?
We got safety standards inculding but not limited to
UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR,NOM etc.
2. How about the energy efficiency?
All our adapters can meet level VI efficiency and ROHS,REACH compatible.
3. How about sample? For free?
Yes, Generally we offer 3-5PCS samples for your test FOR FREE, delivery cost collect.
4. How long can we get samples?
3 ~ 5 days for regular adapters or led driver.
And 20-25 work days for mass production.
5. What is MOQ?
Generally, our MOQ for each model is 1000PCS, we can discuss in details if you have special requirements,
like big quantity for the whole order but small quantity for trial order of each model.
