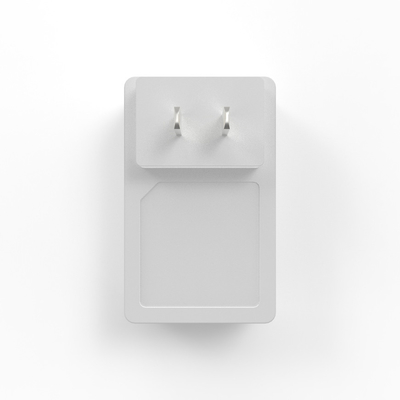

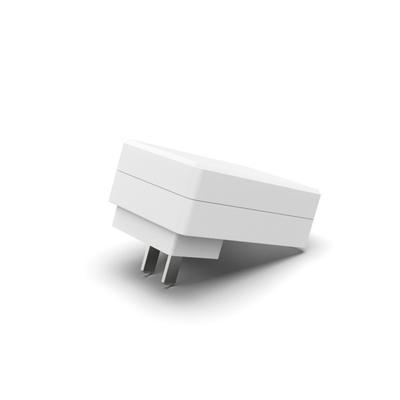

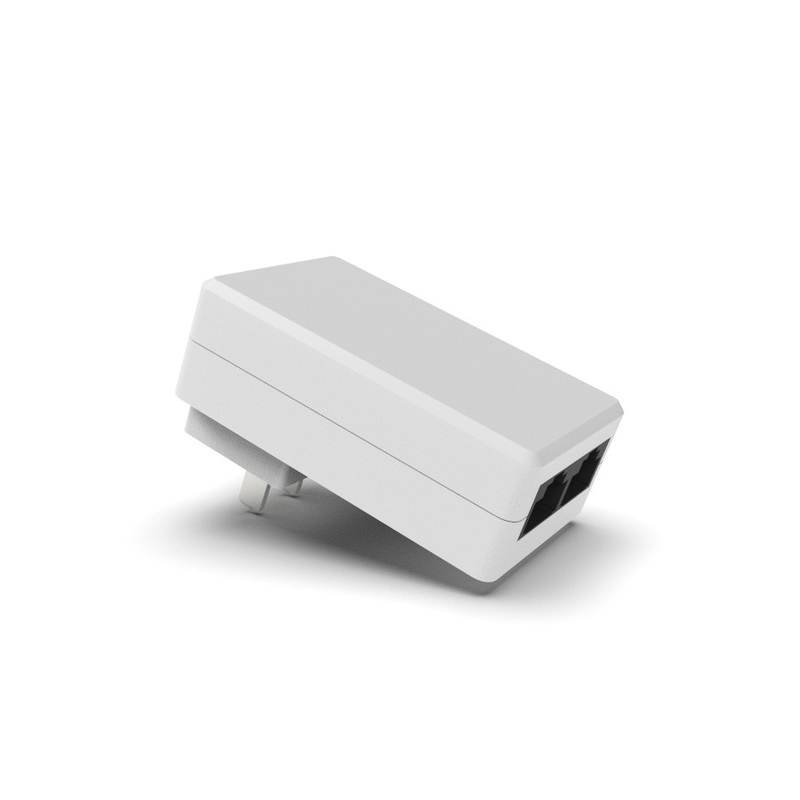

Full Enclosed Plastic Case POE Power Adaptor 230V Input 24V 2A Output

Full Enclosed Plastic Case POE Power Adaptor 230V Input 24V 2A Output
Full Enclosed Plastic Case POE Power Adaptor 230V Input 24V 2A Output Full Enclosed Plastic Case POE Power Adaptor 230V Input 24V 2A Output Full Enclosed Plastic Case POE Power Adaptor 230V Input 24V 2A Output

Large Image :  Full Enclosed Plastic Case POE Power Adaptor 230V Input 24V 2A Output

Product Details:
Place of Origin: China
Brand Name: Gangqi
Certification: GB4943
Model Number: GQ48-240020-AC
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Negotiable
Packaging Details: Export Standard Package
Delivery Time: 25-35 Work day
Payment Terms: T/T
Supply Ability: 200000 Units/Month

Full Enclosed Plastic Case POE Power Adaptor 230V Input 24V 2A Output

Description
MTBF: 50000 Hours Output: GQ48-240020-AC
Input: 180Vac-240Vac Efficiency: V
Leakage Current: 0.25mA For Class II SAFETY STANDARD: GB4943
High Light:

Enclosed POE Power Adaptor

,

230V POE Power Adaptor

,

2A POE Ethernet Adapter



Full Enclosed Plastic Case PoE Switch Power Adaptor 230v 24v 2a Power Supply Adaptor





PoE Power Supply combines power and data and delivers them to a powered device over one Ethernetcable. Designed for power-hungry devices, provides up to 60 watts, twice as much as conventional PoE+ injectors. It features DIP switch configurator and LED indicator for PoE management, and also supports 24VDC /48 VDC power inputs for power redundancy and operational flexibility. wide temperature range design makes it perfect for operating in critical industrial environments.



Model: GQ48-240020-AC
Power:  48 W max
Input: 100-240VAC 50/60Hz
Output Voltage: 12-55V
Output Current: 0.1-4A
Input current: 0.8A max.
Inrush Current: 50 Amps max. at 230VAC/50Hz,full load
Leakage Current: 0.25mA Max. at 264VAC input
Power Consumption: 48W max.
Data Rate: 10/100/1000Mbps
LED Indicator: AC power, POE active
Output Connectors: RJ45(data+power)
Interface 1 " data" in RJ45 Ethernet port
1 " data+power" output RJ45 Ethernet port
1 AC input power socket for external
Protections: Short Circuit /Over Current /Over Voltage
Short Circuit Protection (SCP): Protection to Zero Voltage
Over Voltage Protection (OVP): ≤Vout*150%
Over Current Protection (OCP): 110%-180%
Operating Ambient Temperature.: -20°C-45°C
Operating Humidity: Maximum 90%, Non-condensing
Storage Temperature -20℃ ~+70°C
Storage Humidity Maximum 90%, Non-condensing
Compliance IEEE802.3at/af (POE), CE, RoHS, Reach
Applications: IP Phones,Wireless Networks Access Points, IP print servers, Blue tooth access points, IP Cameras, UPS, Switch, Smart door systerm and more.
MTBF: 100,000 hours minimum at full load at 25℃ ambient
Warranty 3- 5years alternative
Dimension: 120*60*36mm
Weight: 260g
Packaging: 20PCS/CTN,40*30*20cm





Details:

1. Supports all IEEE802.3at- and IEEE 802.3af- compliant POE devices( Wireless LAN access points and bridges, VOIP( voice over Internet Protocol) telephones, IP surveillance cameras)

2. Automatic Detection and Protection of non-standard Ethernet terminals

3. Compact design fits easily in WLAN Access point and IP cameras installations



Product Features



The 48V POE power supply has multi-layer protection,just name a few of them. Input over-voltage protection, output over-voltage protection,  over-current short-circuit protection for each output, and has functions such as conducted interference (CE) and radiated interference (RE).



Comply with EN55022/CLASSB standard, WER OUT (13.26) data is directly transferred out, 45.78 pin provides 48V power supply (45+, 78-)

Full Enclosed Plastic Case POE Power Adaptor 230V Input 24V 2A Output 0

PoE Power Adapters is a kind of adapter  designed for Ethernet application. It delivers power to end device through four idle line of Ethernet cable.To prevent the tiny signal line get hurt, the rated current allowed is 350mA,the trip point of over current proteetion is around 450mA. At no load condition, this series meets green power regulation.







Full Enclosed Plastic Case POE Power Adaptor 230V Input 24V 2A Output 1

Advantages of POE Power


1. It is easy to install and manage. Customers themselves can safely mix legacy and PoE devices on the network, coexisting with existing Ethernet cables


2. It is easy to manage the network equipment.


3. It is safe. Because the PoE power supply end device will only supply power to the device that needs power supply. The Ethernet cable will only have voltage present when the device that needs power is connected, thus eliminating the risk of leakage on the line.


4. It saves costs. Because it only needs to install one cable instead of two. In many cases, installation is required where it is difficult to deploy AC power. With the increase of Ethernet-connected devices, it will greatly reduce the cost of deployment and simplify its manageability if there is no need to provide local power to the device.


5. The addition of a network lightning protection module to POE products can ensure the safety of front-end equipment in thunderstorms. The network cable does not exceed 100 meters, and it is not easy to form induced potential to damage the electronic components of the camera.


6. When the POE-powered network video surveillance system adopts centralized power supply, because the power receiving module has the function of supporting the power identification circuit, it will not cause waste of electric energy and effectively save energy.



Protection:



Full Enclosed Plastic Case POE Power Adaptor 230V Input 24V 2A Output 2

Applications:

Full Enclosed Plastic Case POE Power Adaptor 230V Input 24V 2A Output 3

Full Enclosed Plastic Case POE Power Adaptor 230V Input 24V 2A Output 4

Full Enclosed Plastic Case POE Power Adaptor 230V Input 24V 2A Output 5
