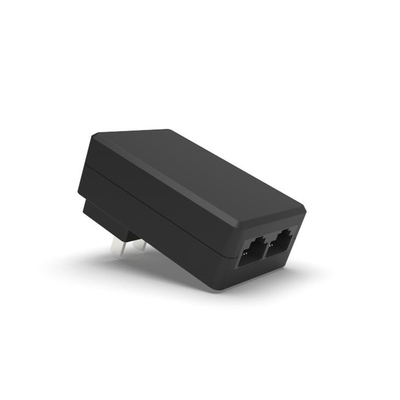

IEEE802.3af / At Poe Ethernet Adapter AC To 24V DC 36W Wireless Lan Access Points

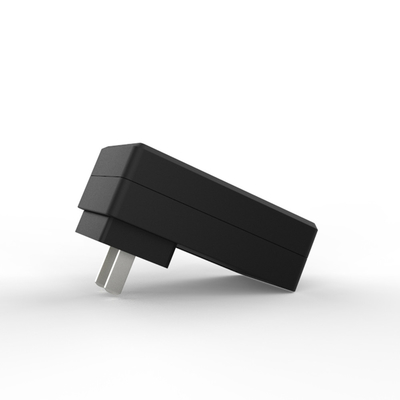

IEEE802.3af / At Poe Ethernet Adapter AC To 24V DC 36W Wireless Lan Access Points
IEEE802.3af / At Poe Ethernet Adapter AC To 24V DC 36W Wireless Lan Access Points IEEE802.3af / At Poe Ethernet Adapter AC To 24V DC 36W Wireless Lan Access Points IEEE802.3af / At Poe Ethernet Adapter AC To 24V DC 36W Wireless Lan Access Points

Large Image :  IEEE802.3af / At Poe Ethernet Adapter AC To 24V DC 36W Wireless Lan Access Points

Product Details:
Place of Origin: China
Brand Name: Gangqi
Certification: GB4943
Model Number: GQ24-480035-AC
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Negotiable
Packaging Details: Export Standard Package
Delivery Time: 25-35 Work day
Payment Terms: T/T
Supply Ability: 200000 Units/Month

IEEE802.3af / At Poe Ethernet Adapter AC To 24V DC 36W Wireless Lan Access Points

Description
MTBF: 50000 Hours Output: GQ36-240150-AC
Input: 180Vac-240Vac Efficiency: V
Leakage Current: 0.25mA For Class II SAFETY STANDARD: GB4943
High Light:

IEEE802.3af POE Power Adapter

,

IEEE802.3at POE Power Adapter

,

CCTV POE Ethernet Adapter



IEEE802.3af / At Poe Ethernet Adapter AC To 24V DC 36W Wireless Lan Access Points



PoE Power Supply combines power and data and delivers them to a powered device over one Ethernetcable. Designed for power-hungry devices, provides up to 60 watts, twice as much as conventional PoE+ injectors. It features DIP switch configurator and LED indicator for PoE management, and also supports 24VDC /48 VDC power inputs for power redundancy and operational flexibility. wide temperature range design makes it perfect for operating in critical industrial environments.



Model: GQ36-240150-AC
Power: 36W max
Input: 100-240VAC 50/60Hz
Output Voltage: 12-55V
Output Current: 0.1-4A
Input current: 0.8A max.
Inrush Current: 50 Amps max. at 230VAC/50Hz,full load
Leakage Current: 0.25mA Max. at 264VAC input
Power Consumption: 36W max.
Data Rate: 10/100/1000Mbps
LED Indicator: AC power, POE active
Output Connectors: RJ45(data+power)
Interface 1 " data" in RJ45 Ethernet port
1 " data+power" output RJ45 Ethernet port
1 AC input power socket for external
Protections: Short Circuit /Over Current /Over Voltage
Short Circuit Protection (SCP): Protection to Zero Voltage
Over Voltage Protection (OVP): ≤Vout*150%
Over Current Protection (OCP): 110%-180%
Operating Ambient Temperature.: -20°C-45°C
Operating Humidity: Maximum 90%, Non-condensing
Storage Temperature -20℃ ~+70°C
Storage Humidity Maximum 90%, Non-condensing
Compliance IEEE802.3at/af (POE), CE, RoHS, Reach
Applications: IP Phones,Wireless Networks Access Points, IP print servers, Blue tooth access points, IP Cameras, UPS, Switch, Smart door systerm and more.
MTBF: 100,000 hours minimum at full load at 25℃ ambient
Warranty 3- 5years alternative
Dimension: 120*60*36mm
Weight: 260g
Packing: 20PCS/CTN,40*30*20cm





Details:

1. Supports all IEEE802.3at- and IEEE 802.3af- compliant POE devices( Wireless LAN access points and bridges, VOIP( voice over Internet Protocol) telephones, IP surveillance cameras)

2. Automatic Detection and Protection of non-standard Ethernet terminals

3. Compact design fits easily in WLAN Access point and IP cameras installations



Product Specification:

Product model:  GQ12-240050-AC
Energy efficiency grade: VI
Input: AC100-240V 50 / 60Hz 0.35A Max
Output: 48V 0.35A 16.8w/48V 0.35A 14.4w
Output voltage ripple and noise: 300mvp-p (maximum)

Output polarity: 45 is positive, 78 is negative



Product size: L70*W40*H27mm



Power cord length: 100cm



MTBF: more than 50000 hours

Safety standard: ul60950; FCC Part 15 Subpart B Class B IEC/EN60335-1; IEC/EN61558-2-16
Certification: CB CE GS UL FCC CCC

Product Features



The 48V POE power supply has multi-layer protection,just name a few of them. Input over-voltage protection, output over-voltage protection,  over-current short-circuit protection for each output, and has functions such as conducted interference (CE) and radiated interference (RE).



Comply with EN55022/CLASSB standard, WER OUT (13.26) data is directly transferred out, 45.78 pin provides 48V power supply (45+, 78-)

IEEE802.3af / At Poe Ethernet Adapter AC To 24V DC 36W Wireless Lan Access Points 0

PoE Power Adapters is a kind of adapter  designed for Ethernet application. It delivers power to end device through four idle line of Ethernet cable.To prevent the tiny signal line get hurt, the rated current allowed is 350mA,the trip point of over current proteetion is around 450mA. At no load condition, this series meets green power regulation.







IEEE802.3af / At Poe Ethernet Adapter AC To 24V DC 36W Wireless Lan Access Points 1

Advantages of POE Power


1. It is easy to install and manage. Customers themselves can safely mix legacy and PoE devices on the network, coexisting with existing Ethernet cables


2. It is easy to manage the network equipment.


3. It is safe. Because the PoE power supply end device will only supply power to the device that needs power supply. The Ethernet cable will only have voltage present when the device that needs power is connected, thus eliminating the risk of leakage on the line.


4. It saves costs. Because it only needs to install one cable instead of two. In many cases, installation is required where it is difficult to deploy AC power. With the increase of Ethernet-connected devices, it will greatly reduce the cost of deployment and simplify its manageability if there is no need to provide local power to the device.


5. The addition of a network lightning protection module to POE products can ensure the safety of front-end equipment in thunderstorms. The network cable does not exceed 100 meters, and it is not easy to form induced potential to damage the electronic components of the camera.


6. When the POE-powered network video surveillance system adopts centralized power supply, because the power receiving module has the function of supporting the power identification circuit, it will not cause waste of electric energy and effectively save energy.



Protection:



IEEE802.3af / At Poe Ethernet Adapter AC To 24V DC 36W Wireless Lan Access Points 2

Applications:

IEEE802.3af / At Poe Ethernet Adapter AC To 24V DC 36W Wireless Lan Access Points 3

IEEE802.3af / At Poe Ethernet Adapter AC To 24V DC 36W Wireless Lan Access Points 4

IEEE802.3af / At Poe Ethernet Adapter AC To 24V DC 36W Wireless Lan Access Points 5
