Product Details:
|
Certificate: | UL/GS/SAA/UKCA/KC/CCC/PSE | Efficiency: | VI |
---|---|---|---|
Warranty: | 2 Year (about 2.28 Years For 24-hour-operation A Day) | Output: | 5.0 W,5.0VDC 1.0A |
Protection: | OVP,OCP,OTP,SCP & Input Protection | EU Directive: | RoHS, REACH,PAHS |
High Light: | 5V Interchangeable Plug Power Adapter,1A Interchangeable Plug Power Adapter,DC Interchangeable Power Adapter |

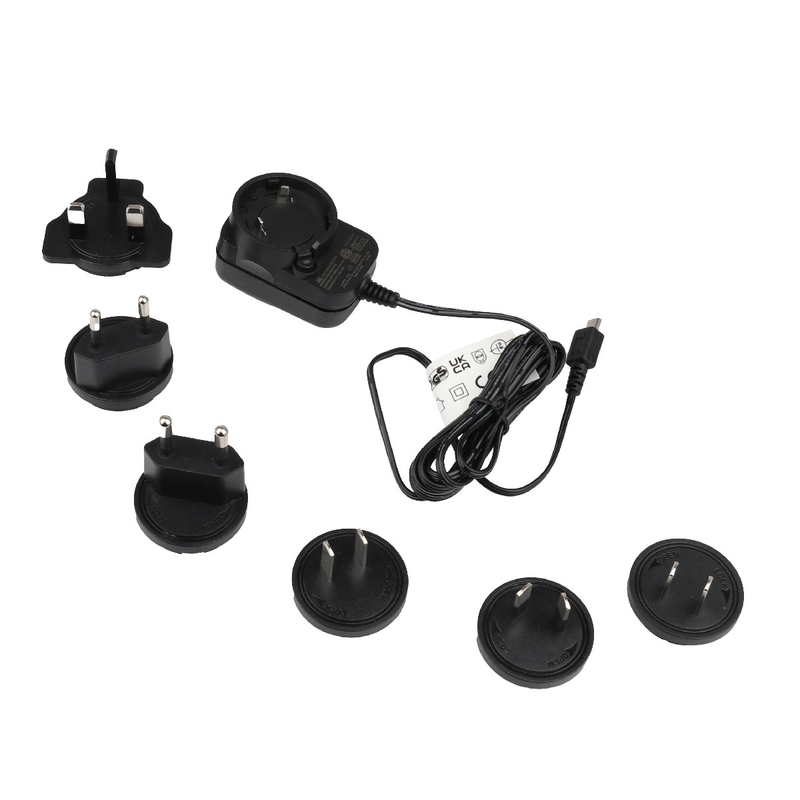

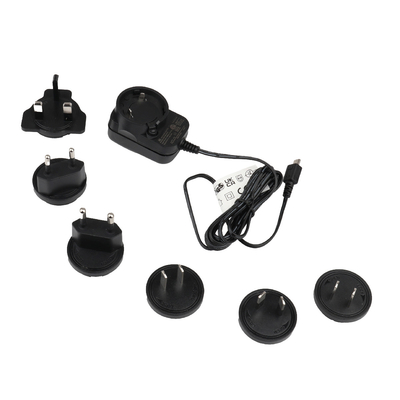

5v Dc Power Adapter Interchangeable Plug Power Adapter Under IEC61558 Approval
Model List:
Model Name | Output Voltage(VDC) | Output Current (A) | Output Power(W ) |
GQ/BZ05-050-YYY-WBU | 5 | 0.01~1.50 | 7.50 |
GB/BZ=ANALOG Company Code | 3.6~6.0 | 0.01~1.50 | 7.50 |
07=Out Power 7W Series | 6.1 ~12.0 | 0.01~1.20 | 7.50 |
XXX=Output Voltage | 12.1~16.0 | 0.01~0.60 | 7.50 |
YYY=Output Current | 16.1~24.0 | 0.01~0.46 | 7.50 |
WW=Plug Type |
Application: Reading lamp and other home appliance or smart devices
Specification Datasheet Table
Output Voltage |
5.0V | ||
Output Current | 1.0A | ||
Output Power | 5.0W | ||
Ripple/Noise |
300mVp-p Max.
|
Custom Design Available | |
Input Voltage & Frequency | 90VAC~264VAC, 47~63HZ | ||
Maximum AC Current | Please refer to the specification datasheet for approval | ||
Input Inrush Current | 40A(RMS) Max, full load tested @AC230V 50HZ | ||
Efficiency | VI | Custom Design Available | |
Protection | OVP,OCP,OTP,SCP & Input Protection | ||
Environmental requirements | Operating Temperature | 0~40 ℃, | |
Storage Temperature | -40~70 ℃ | ||
Operating Humidity | 5%~90% Non-condensing | ||
Storage Humidity | 5%~90% Non-condensing | ||
Reliability | Warranty | 2 year (about 2.28 years for 24-hour-operation a day) | Custom Design Available |
MTBF | >20,000 hour | ||
Insulation Resistanc | > 30MΩ@500VDC; 60S | Custom Design Available | |
Hi-Pot | Meet different safety standard | ||
Leakage Current | 0.25mA Max, full load tested @AC230V 50HZ | ||
Compliance with EU directives law & regulations | RoHS,REACH,PAHS | ||
Safety Standard | Certificate | UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR/CCC | Custom Design Available |
Standards | IEC61558/IEC60335/IEC61347/ETL1310/ IEC62368,GB4943, GB4706,etc... | Custom Design Available | |
EMC | EN55014-1/EN55014-2 compliance | ||
ESD | (Air discharge@ 8KV, Contact discharge@ 6KV,(IEC61000-4-2) | Custom Design Available | |
Surge | ±1KV @ common or different mode | Custom Design Available |
FAQ
1.How about the energy efficiency?
All our adapters can meet level VI efficiency and ROHS,REACH compatible.
2.How about sample? For free?
Yes, Generally we offer 3-5PCS samples for your test FOR FREE, delivery cost collect.
3.How long can we get samples?
3 ~ 5 days for regular adapters or led driver.
And 20-25 work days for mass production.
4.What is MOQ?
Generally, our MOQ for each model is 1000PCS, we can discuss in details if you have special requirements,
like big quantity for the whole order but small quantity for trial order of each model.
5.Do you accept OEM/ODM service? Can I have my own logo on the adapter?
Yes, OEM or ODM is available.
What Can we do ?
