Product Details:
|
| Output Voltage: | 2.4~30Vdc | Output Current: | 0.1A~1.0A |
|---|---|---|---|
| Output Power: | 5~7 W | ||
| High Light: | Interchangeable Power Adapter LP20,5W Interchangeable Power Adapter,LP20 interchangeable dc plugs |
||

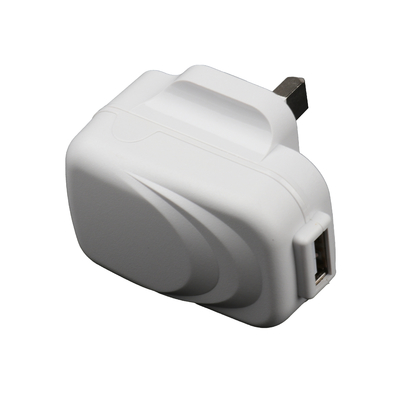

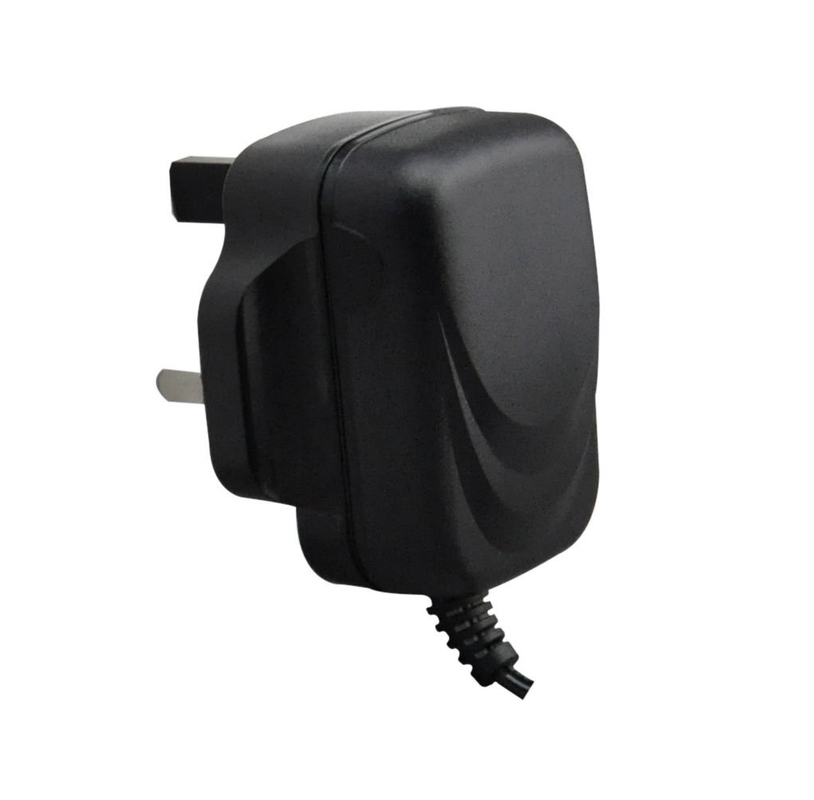

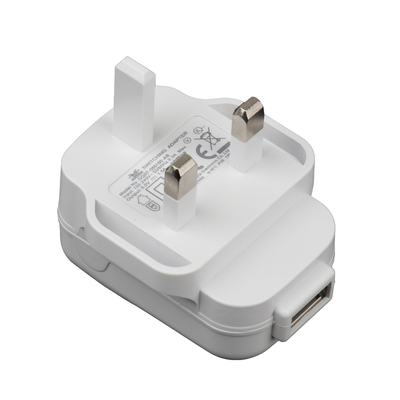

5W Single Output Interchangeable Power Adapter Interchangeable DC Plugs LP20
Output Features:
| Output Voltage | Output Current | Output Power |
| 2.4Vdc-5.9Vdc | 0.1A-1.0A | 5.9W Max |
| 6.0Vdc-9.9Vdc | 0.1A-1.0A | 6.0W Max |
| 10.0Vdc-13.4Vdc | 0.1A-0.6A | 6.3W Max |
| 13.5Vdc-14.9Vdc | 0.1A-0.5A | 6.75W Max |
| 15.0Vdc-19.9Vdc | 0.1A-0.4A | 6.0W Max |
| 20.0Vdc-30.0Vdc | 0.1A-0.3A | 6.0W Max |
For USA - CB / UL / ETL / FCC / PSE / BSMI
For Europe & UK - CB / T-mark(TÜV) / CE
For Australia - CB / RCM
For China - CB / CCC
Product Model Identification
| GQ/BZ- | 05 | xxx | yyy | ww | z |
| ① | ② | ③ | ④ | ⑤ | ⑥ |
| ① | Company code | ||||
| ② | Output power rating series code | ||||
| ③ | Output voltage code | ||||
| ④ | Output current code | ||||
| ⑤ | Plug Type | ||||
| ⑥ | Appliance | ||||
| For example: Product model GQ05-050100-AB ,stands for Analog brand swithing adapter with 5W output power,5V output voltage,1A Output current, plug type is British front style AC Plug | |||||
Who Are We?
Analog Power Electronic Co., Limited are dedicated to providing reliable quality & flexible service.
Specializing in AC-DC Adapters to the highest quality with full safety approval in both industrial and medical grade products.
Standard modified and customized designs are also available.
A small range of open frame power supplies are also available.
If there is something different you require, please feel free to contact us as we will consider custom requirements.
Optional Plug:UL /GS/BS/SAA/CCC/PSE/EAC
Safty Standards
CB -------------IEC 61558/60065/60950/60335-1 / 6134 7-1/61347-2-13
U L--------------ETL 131 0/60065/60950/
GS--------------EN 61558-1 /61558-2-16/60335-1/60950/60065/61347-1/61347-2-13
SAA------------AS/N ZS 61558-2-16/60065 ,/60950
PSE-----------J61558;J55014
CCC----------GB4943.1-2011,GB17625.1-2012,GB9254-2008
CE/EMC------------EN55032/55024/55020/55014-1/55014-2/55015/6154 7
FCC------------Part15B
C-Tick------------CISPR14,CISPR22,CISPR13
EAC------------IEC 61347-1/6134 7-2-13
| Plug Type Identification | |||
| Series No. | Plug Type Style | Code | Description |
| A_ | Front style plug | AU | US front style AC Plug |
| AA | Austrialian front style AC Plug | ||
| AG | European front style AC Plug | ||
| AJ | Japanese front style AC Plug | ||
| AK | Korean front style AC Plug | ||
| AB | British front style AC Plug | ||
| AR | Russian front style AC Plug | ||
| AX | Interchangeable front style AC Plug | ||
| AC | Chinese front style AC Plug | ||
| ABS | Singaporean plug(changeable) | ||
| AA1 | Argentina front style AC Plug | ||
| AUM | Mexico front style AC plug | ||
| H_or C_ | Side style plug | HU/CU | US side style AC Plug |
| HA/CA | Austrialian side style AC Plug | ||
| HG/CG | European side style AC Plug | ||
| HJ/CJ | Japanese side style AC Plug | ||
| HK/CK | Korean side style AC Plug | ||
| HB/CB | British side style AC Plug | ||
| HR/CR | Russian side style AC Plug | ||
| HX/CX | Interchangeable side style AC Plug | ||
| HC/CC | Chinese side style AC Plug | ||
| Z_ | Inline style plug | ZU | US inline style AC Plug |
| ZA | Austrialian inline style AC Plug | ||
| ZG | European inline style AC Plug | ||
| ZJ | Japanese inline style AC Plug | ||
| ZK | Korean inline style AC Plug | ||
| ZB | British inline style AC Plug | ||
| ZR | Russian inline style AC Plug | ||
| ZX | Interchangeable inline style AC Plug | ||
| ZC | Chinese inline style AC Plug | ||
| E _ | Applicance type | E1 | Input with type C14/C6 used |
| E2 | Desk-top input with type C8 used | ||
| E3 | Fixed power cord ungrounded | ||
| E4 | Fixed power cord grounded | ||
Model, GQ05-xxxyyy-wwz(GQ=Gangqi ; 05 = Series xxx＝output Voltage, yyy=output current,
ww'=AU,AG,AC,AJ,AK,AA,AB,AR,AX; CU,CG,CC,CJ,CK,CA,CB, CX,CR;ZU,ZG,ZJ,ZC.
AU for US front style AC Plug.AG for European front style AC Plug, AC for China front style AC Plug,
AJ for Japan front style AC Plug,AK for Korea front style AC Plug, AA for Australia front style AC Plug,
AB for British front style AC Plug.AR for Russia front style AC Plug, AX for Changeable type front styleAC Plug
CU for US side style AC Plug, CG for European side style AC Plug, CC f.r China front style AC Plug,
CJ for Japan side style AC Plug, CKfo『 Ko『ea side style AC Plug, CA fo「Australia side AC Plug,
CB for British Side style AC Plug. CR for Russia side style AC Plug, CX for Changeable type front style AC Plug
ZU for US lnline style AC Plug,AG for lnline front style AC Plug, ZC for China lnline style AC Plug,
ZJ for Japan lnline style AC Plug,z= "A-Z .r digit "0-9" or in blank for marketing purpose.
FAQ
1.Are you a manufacturer or trading company?
We are a factory with 12000 ㎡ plant and more than 400 staffs in 8 production lines
Currently there are 2 production lines are expecting for orders,
Which means 1,600,000~1,800,000PCS monthly production capacity available for your orders.
2.Why choose us?
We are one-stop solution for high quality power adapter & switching power supply.
Fomerly as a wholly-owned subsidiary of "Dongguan Gangqi Group" which R&D & manufacture power adapters since 2004.
3.What safety certificate do you have?
We got safety standards inculding but not limited to
UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR,NOM etc.
4.How about the energy efficiency?
All our adapters can meet level VI efficiency and ROHS,REACH compatible.
5.How about sample? For free?
Yes, Generally we offer 3-5PCS samples for your test FOR FREE, delivery cost collect.
6.How long can we get samples?
3 ~ 5 days for regular adapters or led driver.
And 20-25 work days for mass production.
7.What is MOQ?
Generally, our MOQ for each model is 1000PCS, we can discuss in details if you have special requirements,
like big quantity for the whole order but small quantity for trial order of each model.
8.Do you accept OEM/ODM service? Can I have my own logo on the adapter?
Yes, OEM or ODM is available.
9. What Customers you company have Served?
Customer groups include well-known brand companies especially in small household appliances & Led lighting industry such as
Shark,invitop,Wilit, Interplus,ELECTROLUX,LG,Xiaomi,Haier,Midea,covering many countries and regions around the world.
10. Can you put my own logo for our order?
Yes, we can produce order with your own logo/brand, Once we get your authorization license of the trademark.
11.How about the warranty of your product?
Generally we offer 2-year warranty(about 2.28 years for 24-hour-operation a day) for adapters and led drivers.
Quality is the most important for long-term business partnership,
and it is also our company aim to offer high quality and guaranteed products to help our clients grow business and expand their target markets.
