Product Details:
|
| Efficiency Level: | VI | Output Power: | 6W |
|---|---|---|---|
| Output Voltage: | 3.5Vdc-5.9Vdc | Output Current: | 0.01A-1.0A |
| High Light: | PSE J61558 6W Switching Mode Power Adapter,Switching Mode Power Adapter 6W 9V 0.5A,6W 9V wall mount power adapter |
||

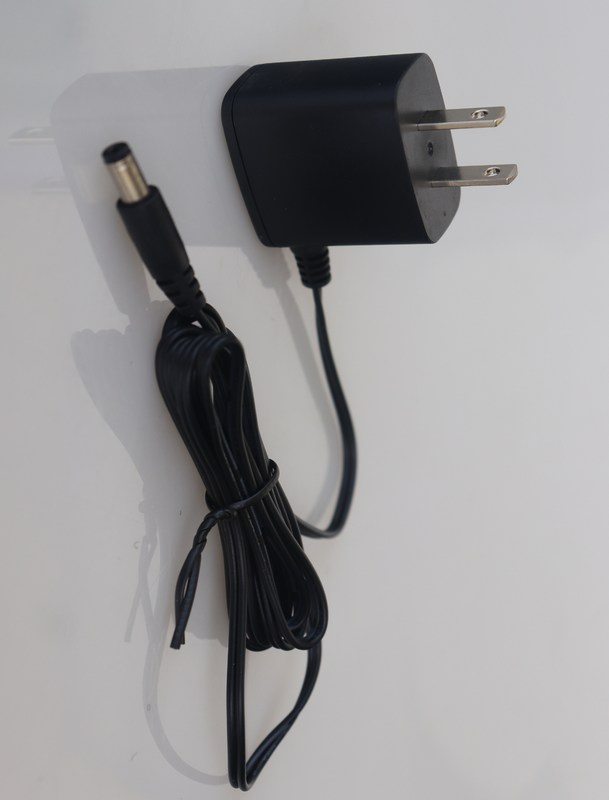

PSE J61558 Approved Switching Mode Power Adapter 6W 9V 0.5A
Output Features:
| Model Name | Output Voltage(VDC) | Output Current (A) | Output Power(W ) |
| GQ/BZ05-XXX-YYY-WW | 2.4~5.9 | 0.1~1.0 | 5.90 |
| GB/BZ=ANALOG Company Code | 6.0~9.9 | 0.1 ~1.0 | 6.00 |
| 05=Out Power 5W Series | 10.0 ~13.4 | 0.1~0.6 | 6.30 |
| XXX=Output Voltage | 13.5~14.9 | 0.1~0.5 | 6.75 |
| YYY=Output Current | 15.0~19.9 | 0.1~0.4 | 6.00 |
| WW=Plug Type | 20.0~30.0 | 0.1~0.3 | 6.00 |
Description
6W.single-output switch power adapter/lP20
GQ06 products are our 6W series switching power adapter products, the maximum power can reach 6.75W output . The pins are both fixed and replaceable. They have excellent performance in temperature rise and EMI. They meet the US Class VI energy efficiency and the EU CoC Phase 2 energy efficiency requirements. They have high-precision output OVP, OCP, OTP,SCP and other reliable protection functions. Effectively protect the power supply safety of terminal equipment and the safety of users.
Safety Certificate:
GQ06 PSE Certificate & Cover Letter.pdf
Competitive Advantage:
| Item | Specification Datasheet Table | Note | |
| Description | Product name | single-output switch power adapter | |
| Product type | Wall mount/Desktop/Interchange | Custom Design Available | |
| Model | GQ06-090050-ZJ | ||
| Supply Ability | 1,600,000~1,800,000PCS/month | ||
| Application | as per customer requirments,etc | Custom Design Available | |
| Mechanical Performance | Color | Black or White | Custom Design Available |
| Dimensions | Subjected to final design | Custom Design Available | |
| Output DC Connector | 5.5x2.1x10mm optional | Custom Design Available | |
| DC Cord / DC Jack | L=1.2m / 1.5m or Customized | Custom Design Available | |
| Plug type | EU ,UK, US, AU, KC, PSE... | Custom Design Available | |
| Electrical Performance | Output Voltage | 9V | |
| Output Current |
0.5A |
||
| Output Power | 4.5W | ||
| Output Ripple Voltage | Please refer to the specification datasheet for approval | Custom Design Available | |
| Input Voltage & Frequency | 90VAC~264VAC, 47~63HZ | ||
| Maximum AC Current | Please refer to the specification datasheet for approval | ||
| Input Inrush Current | 40A(RMS) Max, full load tested @AC230V 50HZ | ||
| Efficiency | VI | Custom Design Available | |
| Protection | OVP,OCP,OTP,SCP & Input Protection | ||
| Environmental requirements | Operating Temperature | 0~40 ℃, | |
| Storage Temperature | -40~70 ℃ | ||
| Operating Humidity | 5%~90% Non-condensing | ||
| Storage Humidity | 5%~90% Non-condensing | ||
| Reliability | Warranty | 2 year (about 2.28 years for 24-hour-operation a day) | Custom Design Available |
| MTBF | ＞20,000 hour | ||
| Insulation Resistanc | ＞ 30MΩ@500VDC; 60S | Custom Design Available | |
| Hi-Pot | Meet different safety standard | ||
| Leakage Current | 0.25mA Max, full load tested @AC230V 50HZ | ||
| Compliance with EU directives law & regulations | RoHS,REACH,PAHS | ||
| Safety Standard | Certificate | UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR | Custom Design Available |
| Standards | IEC61558/IEC60335/IEC61347/ETL1310/ IEC62368,GB4943, GB4706,etc... | Custom Design Available | |
| EMC | Part 15 compliance | ||
| ESD | (Air discharge@ 8KV, Contact discharge@ 6KV,(IEC61000-4-2) | Custom Design Available | |
| Surge | ±1KV @ common or different mode | Custom Design Available | |
Optional Plug:UL /GS/BS/SAA/CCC/PSE/EAC
Safety
CB-----------IEC 61558-1/ IEC61558-2-16,IEC60065,IEC60950,IEC 61347-1 /IEC 61347-2-13
GS BS ---------EN61558-1/EN61558-2-16,EN60950,EN60065,EN 61347-1/EN 6134 7-2-13
ETL-----------ETL 1310(1P20)
ETL-----------UL60950
SAA------------AS/NZS 60950
CCC------------GB4943.1-2011 ;GB/T9254-2008;GB17625.1-2012
CE/EMC-----------EN55032/E N 55024, EN55032/E N 55020, EN55014-1 /EN 55014-2,
FCC-----------Part 158
C-TICK-----------AS/NZS CISPR 22
FAQ
1. What safety certificate do you have?
We got safety standards inculding but not limited to
UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR,NOM etc.
2. How about the energy efficiency?
All our adapters can meet level VI efficiency and ROHS,REACH compatible.
3. How about sample? For free?
Yes, Generally we offer 3-5PCS samples for your test FOR FREE, delivery cost collect.
4. How long can we get samples?
3 ~ 5 days for regular adapters or led driver.
And 20-25 work days for mass production.
5. What is MOQ?
Generally, our MOQ for each model is 1000PCS, we can discuss in details if you have special requirements,
like big quantity for the whole order but small quantity for trial order of each model.
6. Do you accept OEM/ODM service? Can I have my own logo on the adapter?
Yes, OEM or ODM is available.
7. What Customers you company have Served?
Customer groups include well-known brand companies especially in small household appliances & Led lighting industry such as
Shark,invitop,Wilit, Interplus,ELECTROLUX,LG,Xiaomi,Haier,Midea,covering many countries and regions around the world.
8. Can you put my own logo for our order?
Yes, we can produce order with your own logo/brand, Once we get your authorization license of the trademark.
9. How about the warranty of your product?
Generally we offer 2-year warranty(about 2.28 years for 24-hour-operation a day) for adapters and led drivers.
Quality is the most important for long-term business partnership,
and it is also our company aim to offer high quality and guaranteed products to help our clients grow business and expand their target markets.
10. What is the application for your switching power adapter?
Our adapters are widely used in home appliance and industrial Sweeper, scrubber, vacuum cleaner, dehumidifier, air purifier, humidifier, aroma diffuser, air cooler, Sealing machine, vacuum packaging machine, LED lighting, plant light, power tool products, smart wear,IT equipment and security equipment etc.
