Product Details:
|
| Output: | 72W,24V/3A | Efficiency: | VI |
|---|---|---|---|
| Certificate: | UL /GS/BS/SAA/CCC/PSE/EAC | EU Directive: | RoHS, REACH,PAHS |
| Warranty: | 2 Year (about 2.28 Years For 24-hour-operation A Day) | Protection: | OVP,OCP,OTP,SCP & Input Protection |

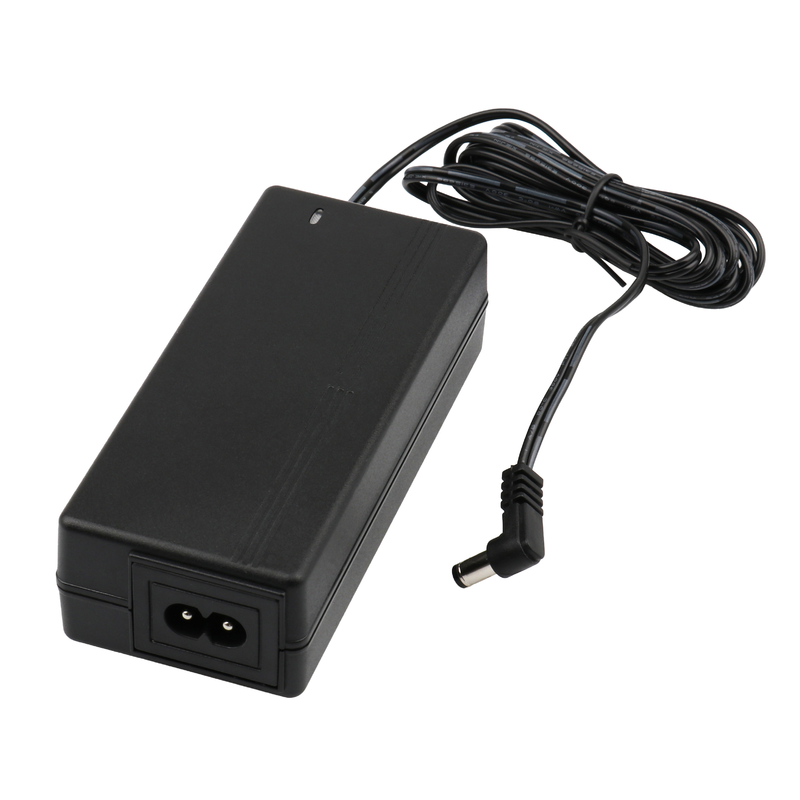

72 Watt 3A AC Switching Adapter 24V For Window Cleaning Robot
65W Series Switching Adapter
Electronic properties
Input Voltage·············90VAC~264VAC
Input current·············2.5A Max
Input Frequency············47HZ~63HZ
Line regulation············1% Max
Load regulation············±5%
Temperature··············0~40℃
Storage temperature··········10℃~85℃
Relative Humidity···········10%~90%
Meet Efficiency Level ·········Level VI
Output Characteristics:
Specification Datasheet Table
| Item | Specification Datasheet Table | Note | |
| Description | Product name | single-output switch power adapter | |
| Product type | Wall mount/Desktop/Interchange | Custom Design Available | |
| Model | GQ150-240500-E1 | ||
| Supply Ability | 1,600,000~1,800,000PCS/month | ||
| Application | as per customer requirments,etc | Custom Design Available | |
| Mechanical Performance | Color | Black or White | Custom Design Available |
| Dimensions | Subjected to final design | Custom Design Available | |
| Output DC Connector | 5.5x2.1x10mm optional | Custom Design Available | |
| DC Cord / DC Jack | L=1.2m / 1.5m or Customized | Custom Design Available | |
| Plug type | EU ,UK, US, AU, KC, PSE... | Custom Design Available | |
| Electrical Performance | Output Voltage & Frequency | 24V | |
| Output Current | 3A | ||
| Output Power | 72W | ||
| Output Ripple Voltage | Please refer to the specification datasheet for approval | Custom Design Available | |
| Input Voltage & Frequency | 90VAC~264VAC, 47~63HZ | ||
| Maximum AC Current | Please refer to the specification datasheet for approval | ||
| Input Inrush Current | 40A(RMS) Max, full load tested @AC230V 50HZ | ||
| Efficiency | VI | Custom Design Available | |
| Protection | OVP,OCP,OTP,SCP & Input Protection | ||
| Environmental requirements | Operating Temperature | 0~40 ℃, | |
| Storage Temperature | -40~70 ℃ | ||
| Operating Humidity | 5%~90% Non-condensing | ||
| Storage Humidity | 5%~90% Non-condensing | ||
| Reliability | Warranty | 2 year (about 2.28 years for 24-hour-operation a day) | Custom Design Available |
| MTBF | ＞20,000 hour | ||
| Insulation Resistanc | ＞ 30MΩ@500VDC; 60S | Custom Design Available | |
| Hi-Pot | Meet different safety standard | ||
| Leakage Current | 0.25mA Max, full load tested @AC230V 50HZ | ||
| Compliance with EU directives law & regulations | RoHS,REACH,PAHS | ||
| Safety Standard | Certificate | UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR | Custom Design Available |
| Standards | IEC61558/IEC60335/IEC61347/ETL1310/ IEC62368,GB4943, GB4706,etc... | Custom Design Available | |
| EMC | EN55014-1/EN55014-2 compliance | ||
| ESD | (Air discharge@ 8KV, Contact discharge@ 6KV,(IEC61000-4-2) | Custom Design Available | |
| Surge | ±1KV @ common or different mode | Custom Design Available | |
| Product Model Identification | |||||
| GQ/BZ- | 65 | xxx | yyy | ww | z |
| ① | ② | ③ | ④ | ⑤ | ⑥ |
| ① | Company code | ||||
| ② | Output power rating series code | ||||
| ③ | Output voltage code | ||||
| ④ | Output current code | ||||
| ⑤ | Plug Type | ||||
| ⑥ | Appliance | ||||
| For example: Product model BZ065-240300-E2,stands for Analog brand swithing adapter with 60W series output power,24V output voltage,3.0A Output current, Input with type C8 used | |||||
