Product Details:
|
Output: | 4.5VDC 150MA | Efficiency: | VI |
---|---|---|---|
Warranty: | 1 Year | Certificate: | GS/CE |
BOBBIN: | PA66 THICK0.71mm MIN | CORE: | LAMINATED SILICON STEEL/ EI35 |
Input Voltage: | 230VAC | ||
High Light: | 4.5v 150ma Adapter,GS 4.5v 150ma Adapter,4.5v Eu Plug Power Adapter |
Description:

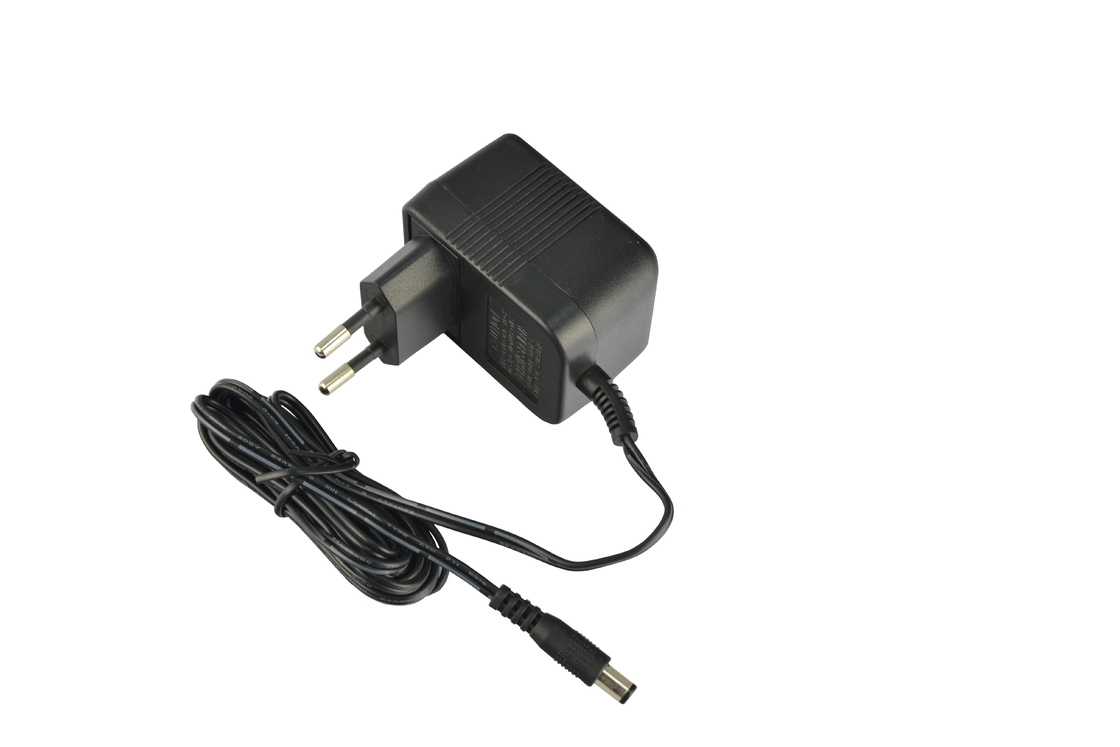

Ac Power Adapter AC ADAPTOR Of EU Plug Efficiency Level VI
Application: christmas trees,Motor
Specification Datasheet Table
Primary rated voltage and frequency: | 230VAC 50Hz. |
FULL LOAD RATED VOLTAGE | 4.5VDC±5% |
RATED CURRENT | 150mA |
NO LOAD VOLTAGE | 7.8VDC±5% |
Insulation resistance |
500VDC supplied,100M ohms minimum between winding & core. |
HI-pot test: | 1750VAC 50Hz for 60seconds (leakage current 1mA) primary to secondary&core. |
Insulation resistance |
500VDC supplied,100M ohms minimum between winding & core. |
INSULATION SYSTEM | CLASS B(130℃) |
Efficiency Level | VI |
