Product Details:
|
| Output: | 35V800MA | Efficiency: | VI |
|---|---|---|---|
| EU Directive: | RoHS, REACH,PAHS | Protection: | OVP,OCP,OTP,SCP & Input Protection |
| Warranty: | 2 Year (about 2.28 Years For 24-hour-operation A Day) | Certificate: | GS/CE/LVD/EMC/EN61558 |
| High Light: | EU Plug 35V Dc Power Supply,800mA Universal Power Supply Adapter,35V Universal Power Supply Adapter |
||

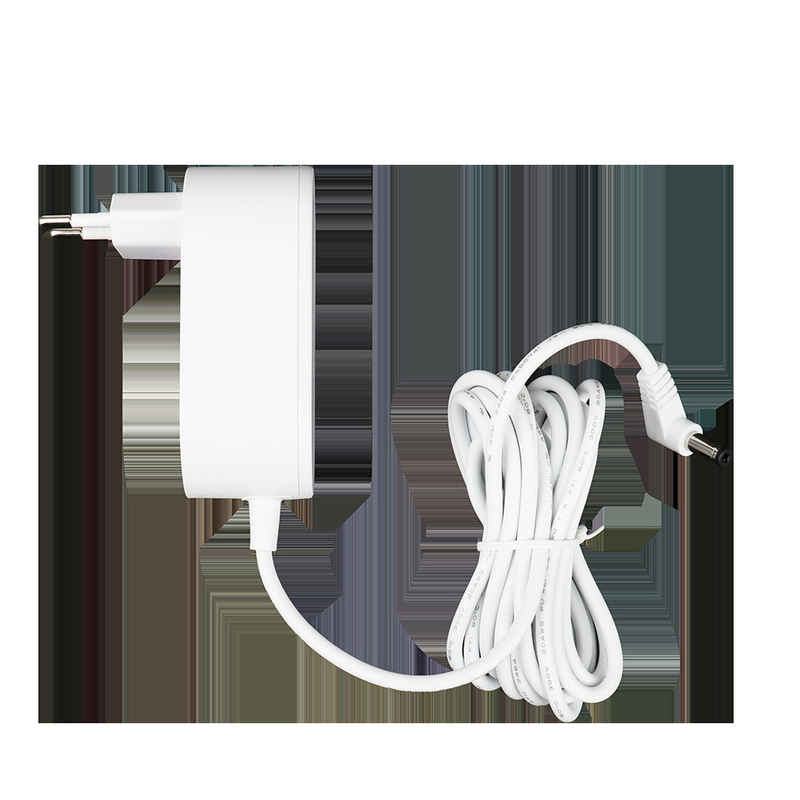

Universal EU Plug 35V DC Power Supply 800mA Efficiency Level VI
Safety Certificate:
BZ030 Series CB Certificate.pdf
Application: Robot vacuum cleaner,Floor vacuum cleaner,
Specification Datasheet Table
| Item | Specification Datasheet Table | Note | |
| Description | Product name | single-output switch power adapter | |
| Product type | Wall mount/Desktop/Interchange | Custom Design Available | |
| Model | BZ030-350080-AG | ||
| Supply Ability | 1,600,000~1,800,000PCS/month | ||
| Application | as per customer requirments,etc | Custom Design Available | |
| Mechanical Performance | Color | Black or White | Custom Design Available |
| Dimensions | Subjected to final design | Custom Design Available | |
| Output DC Connector | 5.5x2.1x10mm optional | Custom Design Available | |
| DC Cord / DC Jack | L=1.2m / 1.5m or Customized | Custom Design Available | |
| Plug type | EU ,UK, US, AU, KC, PSE,SAA... | Custom Design Available | |
| Electrical Performance | Output Voltage & Frequency | 35V | |
| Output Current | 800MA | ||
| Output Power | 28W | ||
| Ripple/Noise |
300mVp-p Max.
|
Custom Design Available | |
| Input Voltage & Frequency | 90VAC~264VAC, 47~63HZ | ||
| Maximum AC Current | Please refer to the specification datasheet for approval | ||
| Input Inrush Current | 40A(RMS) Max, full load tested @AC230V 50HZ | ||
| Efficiency | VI | Custom Design Available | |
| Protection | OVP,OCP,OTP,SCP & Input Protection | ||
| Environmental requirements | Operating Temperature | 0~40 ℃, | |
| Storage Temperature | -40~70 ℃ | ||
| Operating Humidity | 5%~90% Non-condensing | ||
| Storage Humidity | 5%~90% Non-condensing | ||
| Reliability | Warranty | 2 year (about 2.28 years for 24-hour-operation a day) | Custom Design Available |
| MTBF | ＞20,000 hour | ||
| Insulation Resistanc | ＞ 30MΩ@500VDC; 60S | Custom Design Available | |
| Hi-Pot | Meet different safety standard | ||
| Leakage Current | 0.25mA Max, full load tested @AC230V 50HZ | ||
| Compliance with EU directives law & regulations | RoHS,REACH,PAHS | ||
| Safety Standard | Certificate | UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR | Custom Design Available |
| Standards | IEC61558 | Custom Design Available | |
| EMC | EN55014 | ||
| ESD | (Air discharge@ 8KV, Contact discharge@ 6KV,(IEC61000-4-2) | Custom Design Available | |
| Surge | ±1KV @ common or different mode | Custom Design Available | |
Product Model Identification
GQ/BZ-30 xxx yyy ww z
① ② ③ ④ ⑤ ⑥
①Company code for Analog
②Output power rating series code
③Output voltage code
④Output current code
⑤Plug Type
⑥Appliance
For example: Product model BZ030-30080-AG,stands for Analog brand swithing adapter with 30W output power,
35V output voltage,800mA Output current, plug type is EU Plug
Competitive Advantage:
| Plug Type Identification | |||
| Series No. | Plug Type Style | Code | Description |
| A_ | Front style plug | AU | US front style AC Plug |
| AA | Austrialian front style AC Plug | ||
| AG | European front style AC Plug | ||
| AJ | Japanese front style AC Plug | ||
| AK | Korean front style AC Plug | ||
| AB | British front style AC Plug | ||
| AR | Russian front style AC Plug | ||
| AX | Interchangeable front style AC Plug | ||
| AC | Chinese front style AC Plug | ||
| ABS | Singaporean plug(changeable) | ||
| AA1 | Argentina front style AC Plug | ||
| AUM | Mexico front style AC plug | ||
| H_or C_ | Side style plug | HU/CU | US side style AC Plug |
| HA/CA | Austrialian side style AC Plug | ||
| HG/CG | European side style AC Plug | ||
| HJ/CJ | Japanese side style AC Plug | ||
| HK/CK | Korean side style AC Plug | ||
| HB/CB | British side style AC Plug | ||
| HR/CR | Russian side style AC Plug | ||
| HX/CX | Interchangeable side style AC Plug | ||
| HC/CC | Chinese side style AC Plug | ||
| Z_ | Inline style plug | ZU | US inline style AC Plug |
| ZA | Austrialian inline style AC Plug | ||
| ZG | European inline style AC Plug | ||
| ZJ | Japanese inline style AC Plug | ||
| ZK | Korean inline style AC Plug | ||
| ZB | British inline style AC Plug | ||
| ZR | Russian inline style AC Plug | ||
| ZX | Interchangeable inline style AC Plug | ||
| ZC | Chinese inline style AC Plug | ||
| E _ | Applicance type | E1 | Input with type C14/C6 used |
| E2 | Desk-top input with type C8 used | ||
| E3 | Fixed power cord ungrounded | ||
| E4 | Fixed power cord grounded | ||
Check the electrical ratings to choose the right AC adapter for your device
Before trying to find a matching AC adapter for your device, check to see if an OEM (Original Equipment Manufacturer) adapter is available. Device manufacturers sometimes offer replacement chargers/adapters for their products. When this OEM accessory is available, figuring out how to choose the right power adapter for your device becomes easy. Use the model number printed on the adapter that came with your device to do a search to find the specific adapter for your device.
In some cases, OEM adapters are no longer available from the manufacturer. Therefore, finding the right AC adapter for your electronics requires selecting a compatible third-party accessory. The first step is to determine the electrical rating of the device.
When learning how to choose an AC adapter, you also need to know the specifications of the power adapter. Manufacturers often print this information on the labels of these power accessories. Alternatively, check your device's owner's manual for the electrical rating of its AC adapter. The most important parts on the power adapter label are the voltage and amperage. However, polarity is also an important factor.
Voltage is measured in volts (V), while current ratings end in amps or amperes (A). The power adapter has AC input and DC output. Depending on the region, the AC input can be 110/120V or 220/240V. To make it easier for users to choose an AC adapter, manufacturers usually provide adapters that support two voltages. Dual voltage adapters are listed with an input AC voltage range of 110 - 220VAC or 100 - 240VAC. These are useful for travelers researching how to choose the correct power adapter for other parts of the world. A power accessory's DC voltage (VDC) is just as important as its AC voltage (VAC). When reading the adapter label, VDC will be below the DC symbol.
The AC symbol is a tilde, while the DC symbol is a solid dash with three en-dashes below it. The DC voltage is the output voltage of the adapter, which is usually much lower than the input AC voltage.
