Product Details:
|
| Efficiency: | VI | Output: | 24V,0.5A |
|---|---|---|---|
| Protection: | OVP,OCP,OTP,SCP & Input Protection | Warranty: | 2 Year (about 2.28 Years For 24-hour-operation A Day) |
| Certificate: | CE/ GS//CB/EMC | EU Directive: | RoHS, REACH,PAHS |
| High Light: | 24 volt power adapter,500MA 24 volt power adapter,Interchange 500MA EU Plug |
||

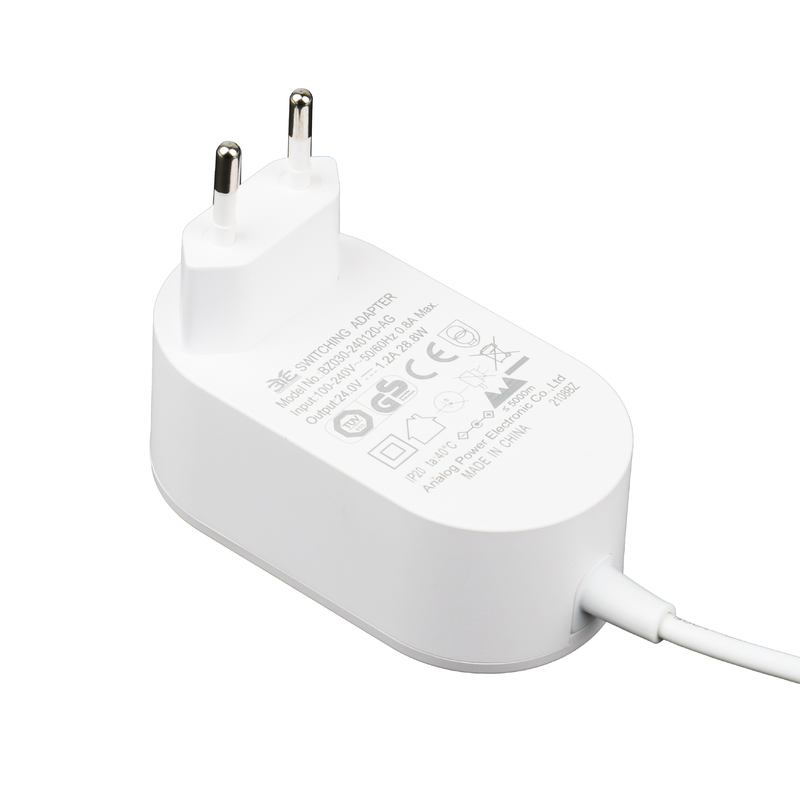

24VDC 500mA 12W Power Adapter For EU Smart Home Appliance
Application: humidifier,sweep machine, sweeper
Specification Datasheet Table
| Item | Specification Datasheet Table | Note | |
| Description | Product name | single-output switch power adapter | |
| Product type | Wall mount/Desktop/Interchange | Custom Design Available | |
| Model | GQ12-240050-AG | ||
| Supply Ability | 1,600,000~1,800,000PCS/month | ||
| Application | as per customer requirments,etc | Custom Design Available | |
| Mechanical Performance | Color | Black or White | Custom Design Available |
| Dimensions | Subjected to final design | Custom Design Available | |
| Output DC Connector | 5.5x2.1x10mm optional | Custom Design Available | |
| DC Cord / DC Jack | L=1.2m / 1.5m or Customized | Custom Design Available | |
| Plug type | EU ,UK, US, AU, KC, PSE... | Custom Design Available | |
| Electrical Performance | Output Voltage & Frequency | 24V | |
| Output Current | 0.5A | ||
| Output Power | 12W | ||
| Ripple/Noise |
300mVp-p Max.
|
Custom Design Available | |
| Input Voltage & Frequency | 90VAC~264VAC, 47~63HZ | ||
| Maximum AC Current | Please refer to the specification datasheet for approval | ||
| Input Inrush Current | 40A(RMS) Max, full load tested @AC230V 50HZ | ||
| Efficiency | VI | Custom Design Available | |
| Protection | OVP,OCP,OTP,SCP & Input Protection | ||
| Environmental requirements | Operating Temperature | 0~40 ℃, | |
| Storage Temperature | -40~70 ℃ | ||
| Operating Humidity | 5%~90% Non-condensing | ||
| Storage Humidity | 5%~90% Non-condensing | ||
| Reliability | Warranty | 2 year (about 2.28 years for 24-hour-operation a day) | Custom Design Available |
| MTBF | ＞20,000 hour | ||
| Insulation Resistanc | ＞ 30MΩ@500VDC; 60S | Custom Design Available | |
| Hi-Pot | Meet different safety standard | ||
| Leakage Current | 0.25mA Max, full load tested @AC230V 50HZ | ||
Product Model Identification
BZ015-xxx yyy ww z
① ② ③ ④ ⑤ ⑥
①Company code for Analog
②Output power rating series code
③Output voltage code
④Output current code
⑤Plug Type
⑥Appliance
For example: Product model BZ015-240050-AG,stands for Analog brand swithing adapter with 12W
output power,24V output voltage,500mA Output current, plug type is EU Plug
FAQ
1.What is the application for your switching power adapter?
Our adapters are widely used in home appliance and industrial Sweeper, scrubber, vacuum cleaner, dehumidifier, air purifier, humidifier, aroma diffuser, air cooler, Sealing machine, vacuum packaging machine, LED lighting, plant light, power tool products, smart wear,IT equipment and security equipment etc.
2. Can you put my own logo for our order?
Yes, we can produce order with your own logo/brand, Once we get your authorization license of the trademark.
3.How about the warranty of your product?
Generally we offer 2-year warranty(about 2.28 years for 24-hour-operation a day) for adapters and led drivers.
Quality is the most important for long-term business partnership,
and it is also our company aim to offer high quality and guaranteed products to help our clients grow business and expand their target markets.
