|Warranty:||2 Year (about 2.28 Years For 24-hour-operation A Day)||Output:||36W,12V3A|
|Protection:||OVP,OCP,OTP,SCP & Input Protection||EU Directive:||RoHS, REACH,PAHS|
12V Output AC DC Switching Power Supply,
36W AC DC Switching Power Supply,
OVP Protection AC To DC Power Supply

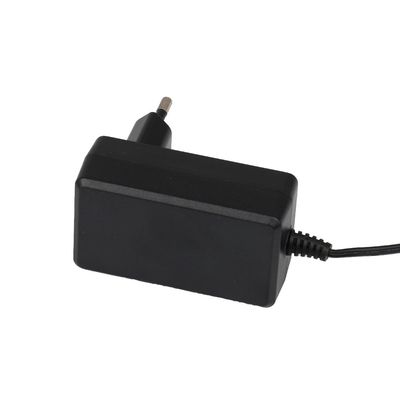

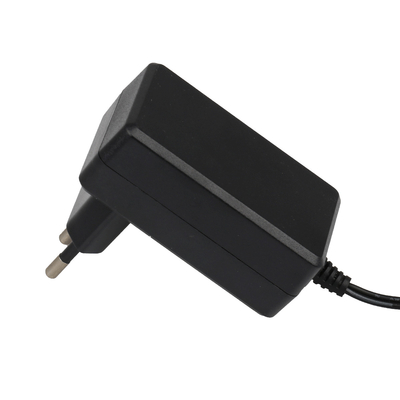

Wall Mounted AC To DC Switching Power Supply 12V 3A 36W EU Plug
Application: Reading lamp and other home appliance or smart devices
|Application Field||Products including but not limited to|
|Robot Vacuum Cleaner, Floor Cleaning Robots,Window Cleaning Robots,Steam Mops,Electric Mops,Cold-air Cooler,Water Purifier,Air purifier,Dehumidifier, Humidifier,Aroma Diffuser,Mosquito Killer,Ice Maker|
|Led Lighting(IEC61347)||Led Power Supply,Led Driver,Table/Desk Lamp,Led Strip Light,Led Desktop Fan,Grow Light,Led Plant Growth Lamp,OSRAM led,|
IT Communications Equipment
|Router,Switch,Mobile phones,Tablet PC,Network, Radio and Television Equipment,PoE...|
|Audio Equipment(IEC62368)||Speakers,Recording Machine,Microphone|
|Video Equipment(IEC62368)||STB TV box,Computers|
|Security Device(IEC62368)||Monitor,CCTV cameras,|
Household and Similar
|Electrical devices with lithium battery power supply requires battery charge adapter|
|Power Units( ETL1310)||Electronic, electrical, mechanical or electron-mechanical products|
|Other Industries||UAV,Drones,Balance Car,Unicycle,Segway,PS4 Game Players Home Healthcare ,Cash registers/Counting Machine,Counterfeit Detector|
|Product Model Identification|
|①||Company code for Analog|
|②||Output power rating series code|
|③||Output voltage code|
|④||Output current code|
|For example: Product 30W output power12V output voltage,2.5A Output current, plug type is EU Plug|
Specification Datasheet Table
|Custom Design Available|
|Input Voltage & Frequency||90VAC~264VAC, 47~63HZ|
|Maximum AC Current||Please refer to the specification datasheet for approval|
|Input Inrush Current||40A(RMS) Max, full load tested @AC230V 50HZ|
|Efficiency||VI||Custom Design Available|
|Protection||OVP,OCP,OTP,SCP & Input Protection|
|Environmental requirements||Operating Temperature||0~40 ℃,|
|Storage Temperature||-40~70 ℃|
|Operating Humidity||5%~90% Non-condensing|
|Storage Humidity||5%~90% Non-condensing|
|Reliability||Warranty||2 year (about 2.28 years for 24-hour-operation a day)||Custom Design Available|
|Insulation Resistanc||＞ 30MΩ@500VDC; 60S||Custom Design Available|
|Hi-Pot||Meet different safety standard|
|Leakage Current||0.25mA Max, full load tested @AC230V 50HZ|
|Compliance with EU directives law & regulations||RoHS,REACH,PAHS|
|Safety Standard||Certificate||UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR/CCC||Custom Design Available|
|Standards||IEC61558/IEC60335/IEC61347/ETL1310/ IEC62368,GB4943, GB4706,etc...||Custom Design Available|
|ESD||(Air discharge@ 8KV, Contact discharge@ 6KV,(IEC61000-4-2)||Custom Design Available|
|Surge||±1KV @ common or different mode||Custom Design Available|
|Plug Type Identification|
|Series No.||Plug Type Style||Code||Description|
|A_||Front style plug||AU||US front style AC Plug|
|AA||Austrialian front style AC Plug|
|AG||European front style AC Plug|
|AJ||Japanese front style AC Plug|
|AK||Korean front style AC Plug|
|AB||British front style AC Plug|
|AR||Russian front style AC Plug|
|AX||Interchangeable front style AC Plug|
|AC||Chinese front style AC Plug|
|AA1||Argentina front style AC Plug|
|AUM||Mexico front style AC plug|
|H_or C_||Side style plug||HU/CU||US side style AC Plug|
|HA/CA||Austrialian side style AC Plug|
|HG/CG||European side style AC Plug|
|HJ/CJ||Japanese side style AC Plug|
|HK/CK||Korean side style AC Plug|
|HB/CB||British side style AC Plug|
|HR/CR||Russian side style AC Plug|
|HX/CX||Interchangeable side style AC Plug|
|HC/CC||Chinese side style AC Plug|
|Z_||Inline style plug||ZU||US inline style AC Plug|
|ZA||Austrialian inline style AC Plug|
|ZG||European inline style AC Plug|
|ZJ||Japanese inline style AC Plug|
|ZK||Korean inline style AC Plug|
|ZB||British inline style AC Plug|
|ZR||Russian inline style AC Plug|
|ZX||Interchangeable inline style AC Plug|
|ZC||Chinese inline style AC Plug|
|E _||Applicance type||E1||Input with type C14/C6 used|
|E2||Desk-top input with type C8 used|
|E3||Fixed power cord ungrounded|
|E4||Fixed power cord grounded|
1.How about the energy efficiency?
All our adapters can meet level VI efficiency and ROHS,REACH compatible.
2.How about sample? For free?
Yes, Generally we offer 3-5PCS samples for your test FOR FREE, delivery cost collect.
3.How long can we get samples?
3 ~ 5 days for regular adapters or led driver.
And 20-25 work days for mass production.
4.What is MOQ?
Generally, our MOQ for each model is 1000PCS, we can discuss in details if you have special requirements,
like big quantity for the whole order but small quantity for trial order of each model.
5.Do you accept OEM/ODM service? Can I have my own logo on the adapter?
Yes, OEM or ODM is available.
6. Can you put my own logo for our order?
Yes, we can produce order with your own logo/brand, Once we get your authorization license of the trademark.
7.How about the warranty of your product?
Generally we offer 2-year warranty(about 2.28 years for 24-hour-operation a day) for adapters and led drivers.
Quality is the most important for long-term business partnership,
and it is also our company aim to offer high quality and guaranteed products to help our clients grow business and expand their target markets.
Who are we?
Analog Power Electronic Co., Limited are dedicated to providing reliable quality & flexible service.
Specializing in AC-DC Adapters to the highest quality with full safety approval in both industrial and home appliance products.
Standard modified and customized designs are also available.
A small range of open frame power supplies are also available.
If there is something different you require please feel free to contact us by email firstname.lastname@example.org as we will consider custom requirements.
