Product Details:
|
| Efficiency Level: | VI | Output Power: | 6W |
|---|---|---|---|
| Output Voltage: | 3.5Vdc-5.9Vdc | Output Current: | 0.01A-1.0A |
| High Light: | FCC 9V 0.5A Power Supply,6W 9V 0.5A Power Supply,9V 0.5A switch mode power supply |
||

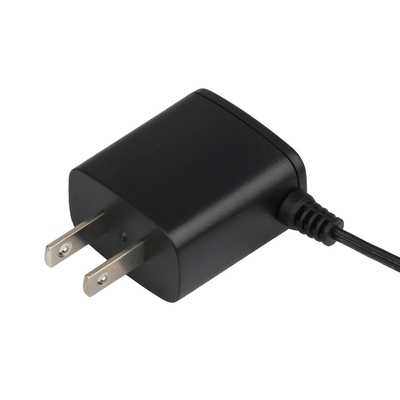

High Safety 6W 9V 0.5A Power Supply , Switch Mode Power Supply FCC Approved
| Model Name | Output Voltage(VDC) | Output Current (A) | Output Power(W ) |
| GQ/BZ06-XXX-YYY-ZC | 3.0~6.0 | 0.01~1.20 | 6.00 |
| GB/BZ=ANALOG Company Code | 6.1~9.9 | 0.01~1.20 | 6.00 |
| 06=Out Power 6W Series | 10.0~14.9 | 0.01~1.20 | 7.00 |
| XXX=Output Voltage | 15.0~24.0 | 0.01~1.20 | 6.00 |
| YYY=Output Current | |||
| ZC=Plug Type |
Description
6W.single-output switch power adapter/lP20
GQ06 products are our 6W series switching power adapter products, the maximum power can reach 6.75W output .
The pins are both fixed and replaceable. They have excellent performance in temperature rise and EMI.
They meet the US Class VI energy efficiency and the EU CoC Phase 2 energy efficiency requirements.
They have high-precision output OVP, OCP, OTP,SCP and other reliable protection functions.
Who are we?
Analog Power Electronic Co., Limited are dedicated to providing reliable quality & flexible service.
Specializing in AC-DC Adapters to the highest quality with full safety approval in both industrial and home appliance products.
Standard modified and customized designs are also available.
A small range of open frame power supplies are also available.
If there is something different you require please feel free to contact us by email sales@analogbz.com as we will consider custom requirements.
What Can we do ?
Effectively protect the power supply safety of terminal equipment and the safety of users.
Safety Certificate & EMC
| Item | Specification Datasheet Table | Note | |
| Description | Product name | single-output switch power adapter | |
| Product type | Wall mount/Desktop/Interchange | Custom Design Available | |
| Model | GQ06-090050-ZU | ||
| Supply Ability | 1,600,000~1,800,000PCS/month | ||
| Application | as per customer requirments,etc | Custom Design Available | |
| Mechanical Performance | Color | Black or White | Custom Design Available |
| Dimensions | Subjected to final design | Custom Design Available | |
| Output DC Connector | 5.5x2.1x10mm optional | Custom Design Available | |
| DC Cord / DC Jack | L=1.2m / 1.5m or Customized | Custom Design Available | |
| Plug type | EU ,UK, US, AU, KC, PSE... | Custom Design Available | |
| Electrical Performance | Output Voltage | 9V | |
| Output Current |
0.5A |
||
| Output Power | 4.5W | ||
| Output Ripple Voltage | Please refer to the specification datasheet for approval | Custom Design Available | |
| Input Voltage & Frequency | 90VAC~264VAC, 47~63HZ | ||
| Maximum AC Current | Please refer to the specification datasheet for approval | ||
| Input Inrush Current | 40A(RMS) Max, full load tested @AC230V 50HZ | ||
| Efficiency | VI | Custom Design Available | |
| Protection | OVP,OCP,OTP,SCP & Input Protection | ||
| Environmental requirements | Operating Temperature | 0~40 ℃, | |
| Storage Temperature | -40~70 ℃ | ||
| Operating Humidity | 5%~90% Non-condensing | ||
| Storage Humidity | 5%~90% Non-condensing | ||
| Reliability | Warranty | 2 year (about 2.28 years for 24-hour-operation a day) | Custom Design Available |
| MTBF | ＞20,000 hour | ||
| Insulation Resistanc | ＞ 30MΩ@500VDC; 60S | Custom Design Available | |
| Hi-Pot | Meet different safety standard | ||
| Leakage Current | 0.25mA Max, full load tested @AC230V 50HZ | ||
| Compliance with EU directives law & regulations | RoHS,REACH,PAHS | ||
| Safety Standard | Certificate | UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR | Custom Design Available |
| Standards | IEC61558/IEC60335/IEC61347/ETL1310/ IEC62368,GB4943, GB4706,etc... | Custom Design Available | |
| EMC | Part 15 compliance | ||
| ESD | (Air discharge@ 8KV, Contact discharge@ 6KV,(IEC61000-4-2) | Custom Design Available | |
| Surge | ±1KV @ common or different mode | Custom Design Available | |
Optional Plug:UL /GS/BS/SAA/CCC/PSE/EAC
Output Features:
| Output Voltage | Output Current | Output Power |
| 3.5Vdc-5.9Vdc | 0.01A-1.0A | 6.0W Max |
| 6.1Vdc-9.9Vdc | 0.01A-1.0A | 6.3W Max |
| 10.0Vdc-13.4Vdc | 0.01A-0.6A | 6.3W Max |
| 13.5Vdc-14.9Vdc | 0.01A-0.5A | 6.75W Max |
| 15.0Vdc-19.9Vdc | 0.01A-0.4A | 6.0W Max |
Safety
CB-----------IEC 61558-1/ IEC61558-2-16,IEC60065,IEC60950,IEC 61347-1 /IEC 61347-2-13
GS BS ---------EN61558-1/EN61558-2-16,EN60950,EN60065,EN 61347-1/EN 6134 7-2-13
ETL-----------ETL 1310(1P20)
ETL-----------UL60950
SAA------------AS/NZS 60950
CCC------------GB4943.1-2011 ;GB/T9254-2008;GB17625.1-2012
CE/EMC-----------EN55032/E N 55024, EN55032/E N 55020, EN55014-1 /EN 55014-2,
FCC-----------Part 158
C-TICK-----------AS/NZS CISPR 22
FAQ
1.Are you a manufacturer or trading company?
We are a factory with 12000 ㎡ plant and more than 400 staffs in 8 production lines
Currently there are 2 production lines are expecting for orders,
Which means 1,600,000~1,800,000PCS monthly production capacity available for your orders.
2.What safety certificate do you have?
We got safety standards inculding but not limited to
UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR,NOM etc.
3.How about the energy efficiency?
All our adapters can meet level VI efficiency and ROHS,REACH compatible.
4.How long can we get samples?
3 ~ 5 days for regular adapters or led driver.
And 20-25 work days for mass production.
5.What is MOQ?
Generally, our MOQ for each model is 1000PCS, we can discuss in details if you have special requirements,
like big quantity for the whole order but small quantity for trial order of each model.
6.Do you accept OEM/ODM service? Can I have my own logo on the adapter?
Yes, OEM or ODM is available.
7. Can you put my own logo for our order?
Yes, we can produce order with your own logo/brand, Once we get your authorization license of the trademark.
8.How about the warranty of your product?
Generally we offer 2-year warranty(about 2.28 years for 24-hour-operation a day) for adapters and led drivers.
Quality is the most important for long-term business partnership,
and it is also our company aim to offer high quality and guaranteed products to help our clients grow business and expand their target markets.
