Product Details:
|
| Certificate: | FCC/IEC62368/IEC60335 | Output: | 24W,12V,2A |
|---|---|---|---|
| Protection: | OVP,OCP,OTP,SCP & Input Protection | Test: | Temperature Test; Vibration Test; Drop-Test;Over Charging And Discharging Test |
| Material: | 94V-0 PCB+94V-0 PC Shell+Copper Wire+Copper Pins | Color: | White/Black |
| High Light: | PF 0.7 Wall Mounted AC Adapter,End Buffer Wall Mounted AC Adapters,Wall Mount Power Adapters 24W |
||

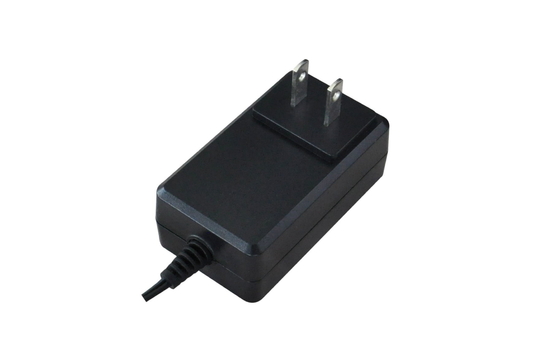

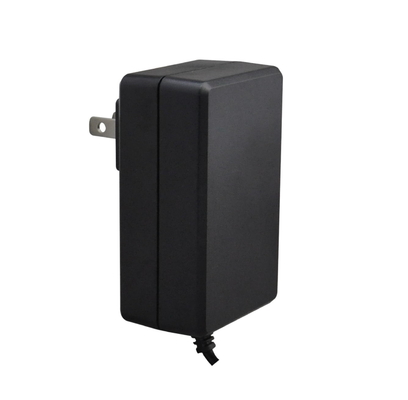

UL/ETL1310 24W 12V 2A PF>0.7 Wall Mounte Power Adapter usedfor lamp
How to Choose the Right AC Adapter for Your Device?
1. Determine the type of plug used in your area;
2. Determine the input interface type of your device;
3. Determine whether the output voltage and current of the adapter match the input voltage and current of the equipment;
4. Confirm the safety regulations corresponding to your equipment type
Adantages
1. AC/DC Plug--Contains conductive metal shrapnel to improve the contact stability of the plug
2. End Buffer Design--After rigorous bending experiments,it is strong and resistant to pulling
3. Bold pure copper wire--Transmission voltage loss is smaller and more stable
4. Adequate spacing to improve heat dissipation performance
5. Use vertical anti-interference high frequency transformer to improve efficiency
6. Ran Multiple tests to make sure the product you recive is of great quality
Specification Datasheet Table
| 24W series | |||
| Output Voltage | 12V | ||
| Output Current | 2A | ||
| Output Power | 24W | ||
| Input Voltage & Frequency | 90VAC~264VAC, 47~63HZ | ||
| Maximum AC Current | Please refer to the specification datasheet for approval | ||
| Input Inrush Current | 40A(RMS) Max, full load tested @AC230V 50HZ | ||
| Efficiency | VI | ||
| Protection | OVP,OCP,OTP,SCP & Input Protection | ||
| Environmental requirements | Operating Temperature | 0~40 ℃, | |
| Storage Temperature | -40~70 ℃ | ||
| Operating Humidity | 5%~90% Non-condensing | ||
| Storage Humidity | 5%~90% Non-condensing | ||
| Reliability | Warranty | 2 year (about 2.28 years for 24-hour-operation a day) | |
| MTBF | ＞20,000 hour | ||
| Insulation Resistanc | ＞ 30MΩ@500VDC; 60S | ||
| Hi-Pot | Meet different safety standard | ||
| Leakage Current | 0.25mA Max, full load tested @AC230V 50HZ | ||
| Compliance with EU directives law & regulations | RoHS,REACH,PAHS | ||
| Safety Standard | Certificate | UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR/CCC | |
| Standards | ETL1310, ETL62368 | ||
| EMC | EN55014-1/EN55014-2 compliance | ||
| ESD | (Air discharge@ 8KV, Contact discharge@ 6KV,(IEC61000-4-2) | ||
| Surge | ±1KV @ common or different mode | ||
according to your need , we can customize the plug, such as US / EU / UK / AU / KR /JP and other regions
