Product Details:
|
| Input Voltage: | 100VAC~240VAC | Certificate: | UL/GS/UKCA/PSE/RCM/KC Certificate |
|---|---|---|---|
| Meet Effiiciency Level: | VI | Input Frequency: | 50~60HZ |
| Output Voltage: | 24.0Vdc | Output Current: | 3.75.0A |
| Temperature: | 0~40 ℃ | Storage Temperature: | 10~85 ℃ |
| High Light: | 3.75A Desktop Power Adapter,90W Desktop Power Adapter,C14 Inlets Desktop Power Adapters |
||
24V3.75A 90W Desktop Power Adapters under IEC61558 approval
| Model Name | Output Voltage(VDC) | Output Current (A) | Output Power(W ) |
| GQ90-XXX-YYY-WW | 9.0~15.0 | 0.01~8.0 | 96.00 |
| GQ/BZ=ANALOG Company Code | 15.1~20.0 | 0.01~5.00 | 96.00 |
| 90=Out Power 90W Series | 20.1~26.0 | 0.01-4.0 | 96.00 |
| XXX=Output Voltage | 26.1~50.0 | 0.01-3.67 | 96.00 |
| YYY=Output Current | 50.1~56.0 | 0.01-2.00 | 112.00 |
| WW=Plug Type |
Variety of inlets available, C6/C8/C14.
With safety approvals, Energy Level VI, RoHS and REACH compliance.
Application
| Application Field | Products including but not limited to |
|
Home/Household Appliances (IEC61558) |
Robot Vacuum Cleaner, Floor Cleaning Robots,Window Cleaning Robots |
Model : GQ90-xxxyyy-E1
(GQ=Gangqi; 90 = Series xxx=Output Voltage; yyy=output current, ) E1 represents appliance inlet with type CB used.
Function: window-cleaning robot etc

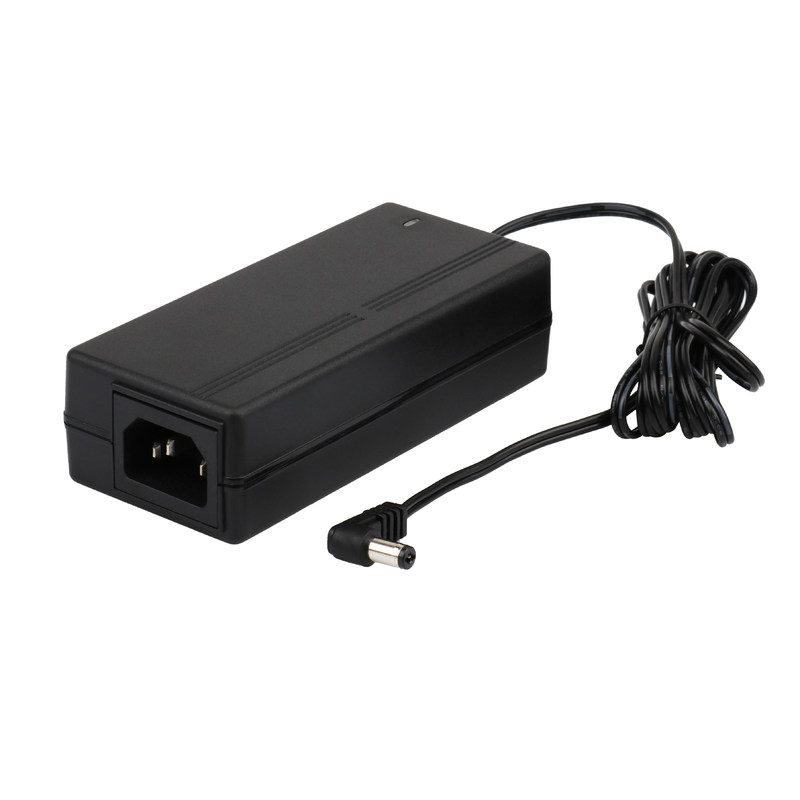

Product Picture:
FQA:
1. Are you a manufacturer or trading company?
We are a factory with 12000 ㎡ plant and more than 400 staffs in 8 production lines
Currently there are 2 production lines are expecting for orders,
Which means 1,600,000~1,800,000PCS monthly production capacity available for your orders.
2. Why choose us?
We are one-stop solution for high quality power adapter & switching power supply.
Fomerly as a wholly-owned subsidiary of "Dongguan Gangqi Group" which R&D & manufacture power adapters since 2004.
3. What safety certificate do you have?
We got safety standards inculding but not limited to
UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR,NOM etc.
