Product Details:
|
Output: | 24W,24V1.0A | Efficiency: | VI |
---|---|---|---|
Certificate: | GS/LVD/CE/EMC | Test: | Temperature Test; Vibration Test; Drop-Test;Over Charging And Discharging Test |
Material: | 94V-0 PCB+94V-0PC Shell+Copper Wire+PVC Cord | Warranty: | 2 Year (about 2.28 Years For 24-hour-operation A Day) |
High Light: | 24W AC DC Power Adapter,EN60335 AC DC Power Adapter,1.0A Wall Mount Power Adapters |

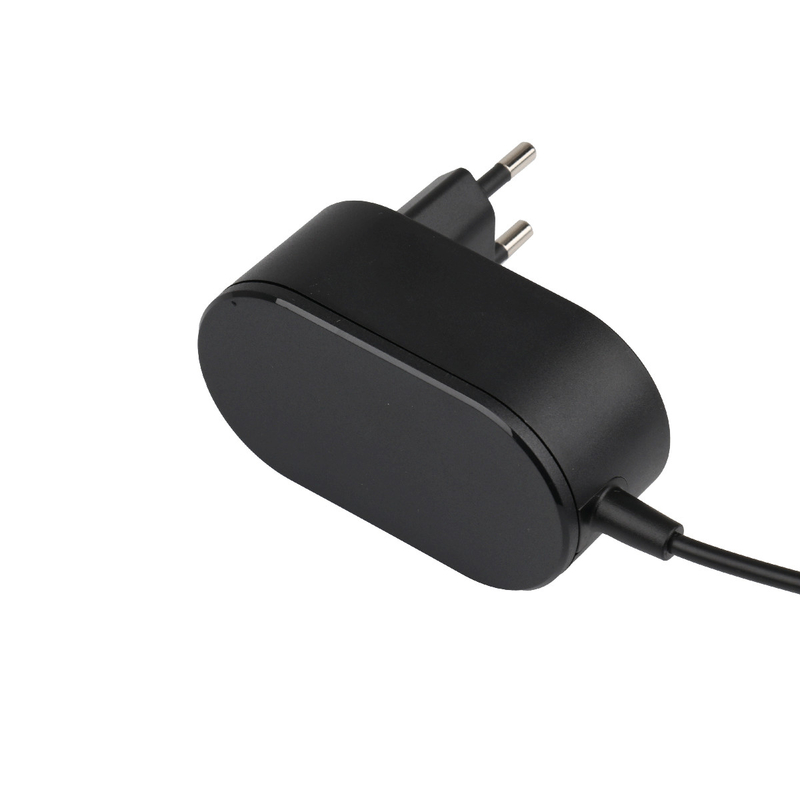

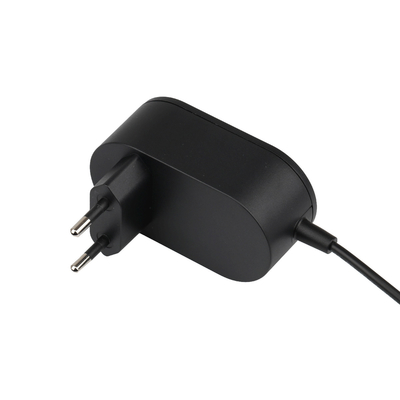

24W 1.0A 24V AC DC Power Adapter With EU Plug GS Certificated EN 60335 Approved
The power adapter is also called external power supply.
Its purpose is to convert the high voltage at home into a low voltage suitable for the work of electronic products.
Specifically, the 220 volt high voltage at home is converted into a stable low voltage of about 5 to 20 volts that these electronic products can work normally.
Advantage
AC/DC Plug--Contains conductive metal shrapnel to improve the contact stability of the plug
End Buffer Design--After rigorous bending experiments,it is strong and resistant to pulling
Bold pure copper wire--Transmission voltage loss is smaller and more stable
Adequate spacing to improve heat dissipation performance
Use vertical anti-interference high frequency transformer to improve efficiency
Output Features
Output Voltage(VDC) | Output Current (A) | Output Power(W ) |
8.4~12.6 | 0.01~2.50 | 24.00 |
8.4~12.6 | 0.01~3.00 | 30.00 |
12.7~18.0 | 0.01~2.30 | 30.00 |
18.1~25.2 | 0.01~1.50 | 30.00 |
25.3~37.8 | 0.01~1.15 | 30.24 |
Application: Strip light,Table lamp,Smart fan,Router,Humidifier,Moniton,Vacuum cleaner,vacuum sweeper
Specification Datasheet Table
Item | Specification Datasheet Table | Note | |
Description | Product name | single-output switch power adapter | |
Product type | Wall mount/Desktop/Interchange | Custom Design Available | |
Model | BZ024-240100-AG | ||
Supply Ability | 1,600,000~1,800,000PCS/month | ||
Application | as per customer requirments,etc | Custom Design Available | |
Mechanical Performance | Color | Black or White | Custom Design Available |
Dimensions | Subjected to final design | Custom Design Available | |
Output DC Connector | 5.5x2.1x10mm optional | Custom Design Available | |
DC Cord / DC Jack | L=1.2m / 1.5m or Customized | Custom Design Available | |
Plug type | EU ,UK, US, AU, KC, PSE,SAA... | Custom Design Available | |
Electrical Performance | Output Voltage & Frequency | 24V | |
Output Current | 1.0A | ||
Output Power | 24W | ||
Ripple/Noise |
300mVp-p Max.
|
Custom Design Available | |
Input Voltage & Frequency | 90VAC~264VAC, 47~63HZ | ||
Maximum AC Current | Please refer to the specification datasheet for approval | ||
Input Inrush Current | 40A(RMS) Max, full load tested @AC230V 50HZ | ||
Efficiency | VI | Custom Design Available | |
Protection | OVP,OCP,OTP,SCP & Input Protection | ||
Environmental requirements | Operating Temperature | 0~40 ℃, | |
Storage Temperature | -40~70 ℃ | ||
Operating Humidity | 5%~90% Non-condensing | ||
Storage Humidity | 5%~90% Non-condensing | ||
Reliability | Warranty | 2 year (about 2.28 years for 24-hour-operation a day) | Custom Design Available |
MTBF | >20,000 hour | ||
Insulation Resistanc | > 30MΩ@500VDC; 60S | Custom Design Available | |
Hi-Pot | Meet different safety standard | ||
Leakage Current | 0.25mA Max, full load tested @AC230V 50HZ | ||
Compliance with EU directives law & regulations | RoHS,REACH,PAHS | ||
Safety Standard | Certificate | UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR | Custom Design Available |
Standards | IEC60335 | Custom Design Available | |
EMC | FCC part 15 | ||
ESD | (Air discharge@ 8KV, Contact discharge@ 6KV,(IEC61000-4-2) | Custom Design Available | |
Surge | ±1KV @ common or different mode | Custom Design Available |
DC Connector type
Plug type
Plug Type Identification | |||
Series No. | Plug Type Style | Code | Description |
A_ | Front style plug | AU | US front style AC Plug |
AA | Austrialian front style AC Plug | ||
AG | European front style AC Plug | ||
AJ | Japanese front style AC Plug | ||
AK | Korean front style AC Plug | ||
AB | British front style AC Plug | ||
AR | Russian front style AC Plug | ||
AX | Interchangeable front style AC Plug | ||
AC | Chinese front style AC Plug | ||
ABS | Singaporean plug(changeable) | ||
AA1 | Argentina front style AC Plug | ||
AUM | Mexico front style AC plug | ||
H_or C_ | Side style plug | HU/CU | US side style AC Plug |
HA/CA | Austrialian side style AC Plug | ||
HG/CG | European side style AC Plug | ||
HJ/CJ | Japanese side style AC Plug | ||
HK/CK | Korean side style AC Plug | ||
HB/CB | British side style AC Plug | ||
HR/CR | Russian side style AC Plug | ||
HX/CX | Interchangeable side style AC Plug | ||
HC/CC | Chinese side style AC Plug | ||
Z_ | Inline style plug | ZU | US inline style AC Plug |
ZA | Austrialian inline style AC Plug | ||
ZG | European inline style AC Plug | ||
ZJ | Japanese inline style AC Plug | ||
ZK | Korean inline style AC Plug | ||
ZB | British inline style AC Plug | ||
ZR | Russian inline style AC Plug | ||
ZX | Interchangeable inline style AC Plug | ||
ZC | Chinese inline style AC Plug | ||
E _ | Applicance type | E1 | Input with type C14/C6 used |
E2 | Desk-top input with type C8 used | ||
E3 | Fixed power cord ungrounded | ||
E4 | Fixed power cord grounded |
