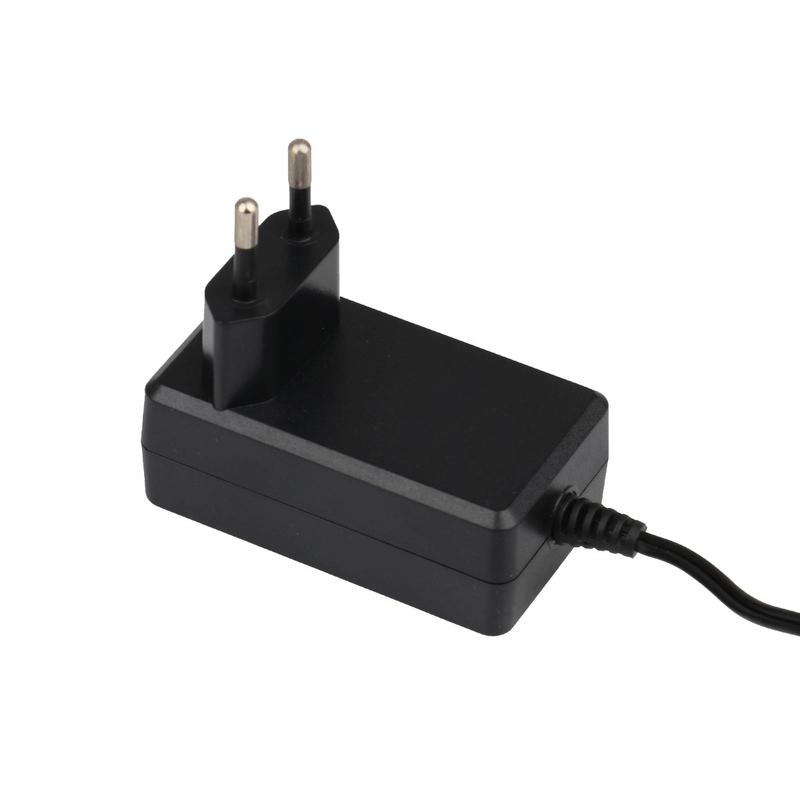

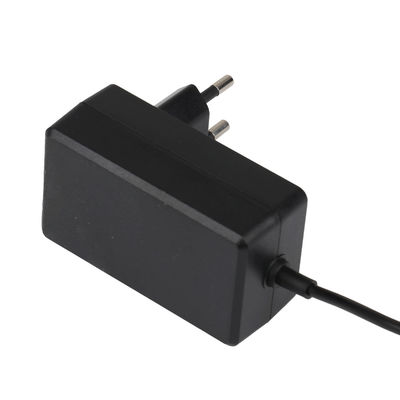

1.25A 30W 24V Wall Mount Power Adapter GS EN61347 Certificated

1.25A 30W 24V Wall Mount Power Adapter GS EN61347 Certificated
1.25A 30W 24V Wall Mount Power Adapter GS EN61347 Certificated 1.25A 30W 24V Wall Mount Power Adapter GS EN61347 Certificated

Large Image :  1.25A 30W 24V Wall Mount Power Adapter GS EN61347 Certificated

Product Details:
Place of Origin: China
Brand Name: Analog
Certification: EN61347 EN61558 EN60335 EN62368
Model Number: BZ024-240125-AG
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: 2.5-3.5USD
Packaging Details: White box/Carton
Delivery Time: 10-25 work days
Payment Terms: T/T
Supply Ability: 1,600,000~1,800,000PCS/Month

1.25A 30W 24V Wall Mount Power Adapter GS EN61347 Certificated

Description
Certificate: TUV/SUD EN61347 EN61558 EN60335 EN62368 Output: 30W 24VDC 1.25A
Logo: Customized Test: Temperature Test; Vibration Test; Drop-Test;Over Charging And Discharging Test
Color: White/Black Warranty: 2 Year (about 2.28 Years For 24-hour-operation A Day)
High Light:

1.25A Wall Mount Power Adapter

,

EN61347 Wall Mount Power Adapter

,

Sweeper Wall Mount Power Adapter



New design of 30W 1.25A 24V Wall Mounted Power AdapterGS Certificated EN61347approved



What is A power adapter used for?

Power adapter, also known as external power supply, is a power supply voltage conversion equipment for small portable electronic equipment and electronic appliances. It is commonly used in small electronic products such as mobile phones, LED field and laptops



Adantages
1. AC/DC Plug--Contains conductive metal shrapnel to improve the contact stability of the plug
2. End Buffer Design -- After rigorous bending experiments,the Power Adapter is strong and resistant for pulling
3. Bold pure copper wire --Transmission voltage loss is smaller and much more stable

Product Description

Output Voltage(VDC) Output Current (A) Output Power(W )
5.0~7.9 0.01~3.00 23.70
8.0~11.0 0.01~3.00 27.00
11.1~15.0 0.01~2.50 30.00
15.1~24.0 0.01~1.50 30.00
24.1~32.0 0.01~1.24 30.00

We can customize the plug according to your need, such as US / EU / UK / AU / KR /JP and other regions







Application: Air Purifier/Cleaner/Sweeper/Window Wiper

1.25A 30W 24V Wall Mount Power Adapter GS EN61347 Certificated 0




Specification Datasheet Table



Item Specification Datasheet Table Note
Description Product name single-output switch power adapter
Product type Wall mount/Desktop/Interchange
Model GQ24-240125-AG
Supply Ability 1,600,000~1,800,000PCS/month
Application as per customer requirments,etc
Mechanical Performance Color Black or White
Dimensions Subjected to final design
Output DC Connector 5.5x2.1x10mm optional
DC Cord / DC Jack L=1.2m / 1.5m or Customized
Plug type EU ,UK, US, AU, KC, PSE...
Electrical Performance Output Voltage & Frequency 24V
Output Current 1.25A
Output Power 30W
Ripple/Noise
300mVp-p Max.

Input Voltage & Frequency 90VAC~264VAC, 47~63HZ
Maximum AC Current Please refer to the specification datasheet for approval
Input Inrush Current 40A(RMS) Max, full load tested @AC230V 50HZ
Efficiency VI
Protection OVP,OCP,OTP,SCP & Input Protection
Environmental requirements Operating Temperature 0~40 ℃,
Storage Temperature -40~70 ℃
Operating Humidity 5%~90% Non-condensing
Storage Humidity 5%~90% Non-condensing
Reliability Warranty 2 year (about 2.28 years for 24-hour-operation a day)
MTBF >20,000 hour
Insulation Resistanc > 30MΩ@500VDC; 60S
Hi-Pot Meet different safety standard
Leakage Current 0.25mA Max, full load tested @AC230V 50HZ
Compliance with EU directives law & regulations RoHS,REACH,PAHS
Safety Standard Certificate UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR
Standards IEC61558/IEC60335/IEC61347/ETL1310/ IEC62368,GB4943, GB4706,etc...
EMC EN55014-1/EN55014-2 compliance
ESD (Air discharge@ 8KV, Contact discharge@ 6KV,(IEC61000-4-2)
Surge ±1KV @ common or different mode



Application



Application Field Products including but not limited to

Home/Household Appliances

(IEC61558)

Robot Vacuum Cleaner, Floor Cleaning Robots,Window Cleaning Robots,Steam Mops,Electric Mops,Cold-air Cooler,Water Purifier,Air purifier,Dehumidifier, Humidifier,Aroma Diffuser,Mosquito Killer,Ice Maker
Led Lighting(IEC61347) Led Power Supply,Led Driver,Table/Desk Lamp,Led Strip Light,Led Desktop Fan,Grow Light,Led Plant Growth Lamp,OSRAM led,

IT Communications Equipment

(IEC62368=IEC60950+IEC60065)

Router,Switch,Mobile phones,Tablet PC,Network, Radio and Television Equipment,PoE...
Audio Equipment(IEC62368) Speakers,Recording Machine,Microphone
Video Equipment(IEC62368) STB TV box,Computers
Security Device(IEC62368) Monitor,CCTV cameras,

Household and Similar

Electrical Appliances

(IEC60335)

Electrical devices with lithium battery power supply requires battery charge adapter
Power Units( ETL1310) Electronic, electrical, mechanical or electron-mechanical products
Other Industries UAV,Drones,Balance Car,Unicycle,Segway,PS4 Game Players Home Healthcare ,Cash registers/Counting Machine,Counterfeit Detector



More Connector type/More Plug type







Plug Type Identification
Series No. Plug Type Style Code Description
A_ Front style plug AU US front style AC Plug
AA Austrialian front style AC Plug
AG European front style AC Plug
AJ Japanese front style AC Plug
AK Korean front style AC Plug
AB British front style AC Plug
AR Russian front style AC Plug
AX Interchangeable front style AC Plug
AC Chinese front style AC Plug
ABS Singaporean plug(changeable)
AA1 Argentina front style AC Plug
AUM Mexico front style AC plug
H_or C_ Side style plug HU/CU US side style AC Plug
HA/CA Austrialian side style AC Plug
HG/CG European side style AC Plug
HJ/CJ Japanese side style AC Plug
HK/CK Korean side style AC Plug
HB/CB British side style AC Plug
HR/CR Russian side style AC Plug
HX/CX Interchangeable side style AC Plug
HC/CC Chinese side style AC Plug
Z_ Inline style plug ZU US inline style AC Plug
ZA Austrialian inline style AC Plug
ZG European inline style AC Plug
ZJ Japanese inline style AC Plug
ZK Korean inline style AC Plug
ZB British inline style AC Plug
ZR Russian inline style AC Plug
ZX Interchangeable inline style AC Plug
ZC Chinese inline style AC Plug
E _ Applicance type E1 Input with type C14/C6 used
E2 Desk-top input with type C8 used
E3 Fixed power cord ungrounded
E4 Fixed power cord grounded
