Product Details:
|
| Certificate: | KC/KFC | Output: | 24W 24VDC 1A |
|---|---|---|---|
| Logo: | Customized | Test: | Temperature Test; Vibration Test; Drop-Test;Over Charging And Discharging Test |
| Color: | White/Black | Warranty: | 2 Year (about 2.28 Years For 24-hour-operation A Day) |
| High Light: | 24W Output Wall Mount Power Adapters,24VDC Output Wall Mount Power Adapters,IEC 61558 Wall Mount Power Adapter |
||

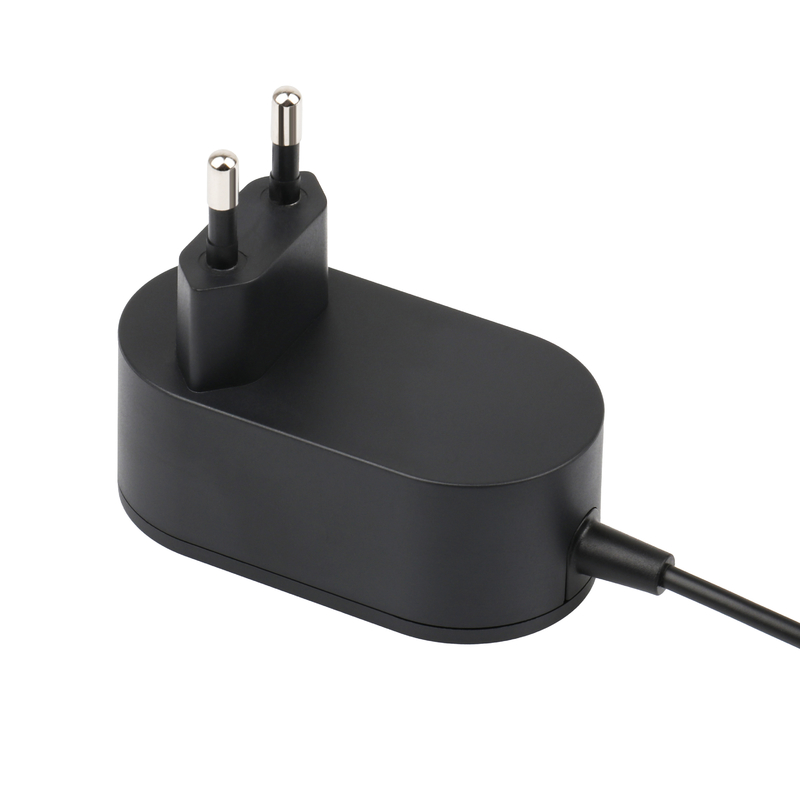

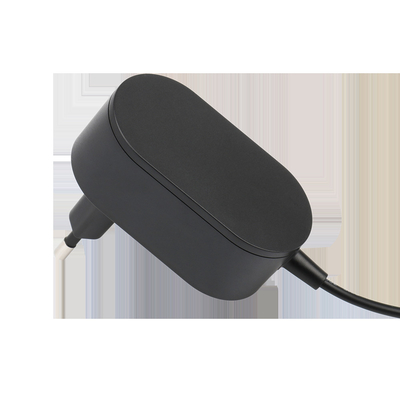

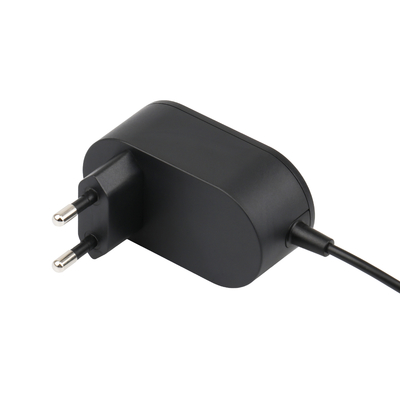

New Design of 24W 1A 24V Wall Mounted Power Adapter KC Certificate IEC61558/IEC60335 Approved
What is A power adapter used for?
Power adapter, also known as external power supply, is a power supply voltage conversion equipment for small portable electronic equipment and electronic appliances. It is commonly used in small electronic products such as mobile phones, LED field and laptops.Analog Power is a professional ac dc manufacturer in Dongguan China.
Product Description
| Output Voltage(VDC) | Output Current (A) | Output Power(W ) |
| 5.0~7.9 | 0.01~3.00 | 23.70 |
| 8.0~11.0 | 0.01~3.00 | 27.00 |
| 11.1~15.0 | 0.01~2.50 | 30.00 |
| 15.1~24.0 | 0.01~1.50 | 30.00 |
| 24.1~32.0 | 0.01~1.24 | 30.00 |
Safety Certificate and EMC
Application: Air Purifier/Cleaner/Sweeper/Window Wiper
Specification Datasheet Table
| Item | Specification Datasheet Table | Note | |
| Description | Product name | single-output switch power adapter | |
| Product type | Wall mount/Desktop/Interchange | ||
| Model | GQ48-240200-AG | ||
| Supply Ability | 1,600,000~1,800,000PCS/month | ||
| Application | as per customer requirments,etc | ||
| Mechanical Performance | Color | Black or White | |
| Dimensions | Subjected to final design | ||
| Output DC Connector | 5.5x2.1x10mm optional | ||
| DC Cord / DC Jack | L=1.2m / 1.5m or Customized | ||
| Plug type | EU ,UK, US, AU, KC, PSE... | ||
| Electrical Performance | Output Voltage & Frequency | 24V | |
| Output Current | 1A | ||
| Output Power | 24W | ||
| Ripple/Noise |
300mVp-p Max.
|
||
| Input Voltage & Frequency | 90VAC~264VAC, 47~63HZ | ||
| Maximum AC Current | Please refer to the specification datasheet for approval | ||
| Input Inrush Current | 40A(RMS) Max, full load tested @AC230V 50HZ | ||
| Efficiency | VI | ||
| Protection | OVP,OCP,OTP,SCP & Input Protection | ||
| Environmental requirements | Operating Temperature | 0~40 ℃, | |
| Storage Temperature | -40~70 ℃ | ||
| Operating Humidity | 5%~90% Non-condensing | ||
| Storage Humidity | 5%~90% Non-condensing | ||
| Reliability | Warranty | 2 year (about 2.28 years for 24-hour-operation a day) | |
| MTBF | ＞20,000 hour | ||
| Insulation Resistanc | ＞ 30MΩ@500VDC; 60S | ||
| Hi-Pot | Meet different safety standard | ||
| Leakage Current | 0.25mA Max, full load tested @AC230V 50HZ | ||
| Compliance with EU directives law & regulations | RoHS,REACH,PAHS | ||
| Safety Standard | Certificate | UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR | |
| Standards | IEC61558/IEC60335/IEC61347/ETL1310/ IEC62368,GB4943, GB4706,etc... | ||
| EMC | EN55014-1/EN55014-2 compliance | ||
| ESD | (Air discharge@ 8KV, Contact discharge@ 6KV,(IEC61000-4-2) | ||
| Surge | ±1KV @ common or different mode | ||
Application
| Application Field | Products including but not limited to |
|
Home/Household Appliances (IEC61558) |
Robot Vacuum Cleaner, Floor Cleaning Robots,Window Cleaning Robots,Steam Mops,Electric Mops,Cold-air Cooler,Water Purifier,Air purifier,Dehumidifier, Humidifier,Aroma Diffuser,Mosquito Killer,Ice Maker |
| Led Lighting(IEC61347) | Led Power Supply,Led Driver,Table/Desk Lamp,Led Strip Light,Led Desktop Fan,Grow Light,Led Plant Growth Lamp,OSRAM led, |
|
IT Communications Equipment (IEC62368=IEC60950+IEC60065) |
Router,Switch,Mobile phones,Tablet PC,Network, Radio and Television Equipment,PoE... |
| Audio Equipment(IEC62368) | Speakers,Recording Machine,Microphone |
| Video Equipment(IEC62368) | STB TV box,Computers |
| Security Device(IEC62368) | Monitor,CCTV cameras, |
|
Household and Similar Electrical Appliances (IEC60335) |
Electrical devices with lithium battery power supply requires battery charge adapter |
| Power Units( ETL1310) | Electronic, electrical, mechanical or electron-mechanical products |
| Other Industries | UAV,Drones,Balance Car,Unicycle,Segway,PS4 Game Players Home Healthcare ,Cash registers/Counting Machine,Counterfeit Detector |
More Connector type/More Plug type
| Plug Type Identification | |||
| Series No. | Plug Type Style | Code | Description |
| A_ | Front style plug | AU | US front style AC Plug |
| AA | Austrialian front style AC Plug | ||
| AG | European front style AC Plug | ||
| AJ | Japanese front style AC Plug | ||
| AK | Korean front style AC Plug | ||
| AB | British front style AC Plug | ||
| AR | Russian front style AC Plug | ||
| AX | Interchangeable front style AC Plug | ||
| AC | Chinese front style AC Plug | ||
| ABS | Singaporean plug(changeable) | ||
| AA1 | Argentina front style AC Plug | ||
| AUM | Mexico front style AC plug | ||
| H_or C_ | Side style plug | HU/CU | US side style AC Plug |
| HA/CA | Austrialian side style AC Plug | ||
| HG/CG | European side style AC Plug | ||
| HJ/CJ | Japanese side style AC Plug | ||
| HK/CK | Korean side style AC Plug | ||
| HB/CB | British side style AC Plug | ||
| HR/CR | Russian side style AC Plug | ||
| HX/CX | Interchangeable side style AC Plug | ||
| HC/CC | Chinese side style AC Plug | ||
| Z_ | Inline style plug | ZU | US inline style AC Plug |
| ZA | Austrialian inline style AC Plug | ||
| ZG | European inline style AC Plug | ||
| ZJ | Japanese inline style AC Plug | ||
| ZK | Korean inline style AC Plug | ||
| ZB | British inline style AC Plug | ||
| ZR | Russian inline style AC Plug | ||
| ZX | Interchangeable inline style AC Plug | ||
| ZC | Chinese inline style AC Plug | ||
| E _ | Applicance type | E1 | Input with type C14/C6 used |
| E2 | Desk-top input with type C8 used | ||
| E3 | Fixed power cord ungrounded | ||
| E4 | Fixed power cord grounded | ||
We can customize the plug according to your need, such as US / EU / UK / AU / KR /JP and other regions
Adantages
1. AC/DC Plug--Contains conductive metal shrapnel to improve the contact stability of the plug
2. End Buffer Design -- After rigorous bending experiments,the Power Adapter is strong and resistant for pulling
3. Bold pure copper wire --Transmission voltage loss is smaller and much more stable
4. Improve heat dissipation performance by adequate spacing
5. Improve efficiency by using vertical anti-interference high frequency transformer
6. We went through multiple tests to make sure the product you recive is of great quality
