Product Details:
|
| Input: | 100-240VAC | Output: | 5W,5V,1A/7.5W,5V,1.5A |
|---|---|---|---|
| Certificate: | UKCA SAA,A-Tick、C-tick、DOFT、QAS、SAI | EU Directive: | RoHS, REACH,PAHS |
| Protection: | OVP,OCP,OTP,SCP & Input Protection | Logo: | Customized |
| High Light: | 5.0V UK Plug Battery Charger,OCP Plug Battery Charger,1.5A Wall Mounted Battery Charger |
||

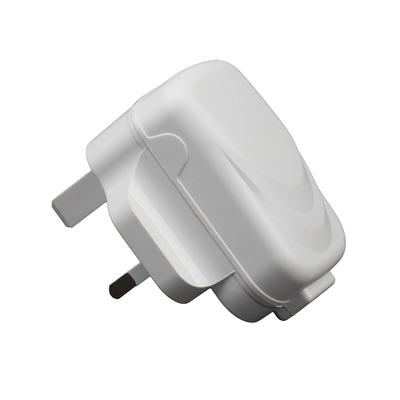

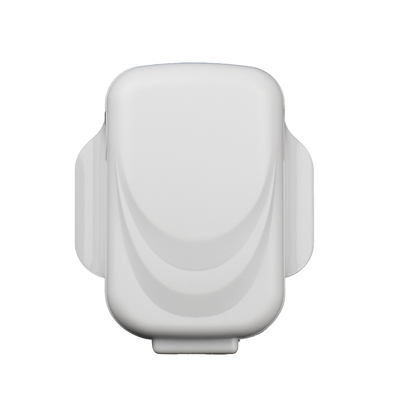

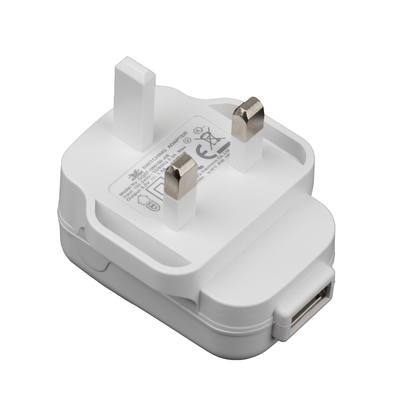

UKCA Certified 5V 1A ,1.5A Power Adapter with UK plug ,Battery Charger For Mobile Phone
Output Spec.
| Output Voltage(VDC) | Output Current (A) | Output Power(W ) |
| 2.4~5.9 | 0.1~1.0 | 5.90 |
| 6.0~9.9 | 0.1 ~1.0 | 6.00 |
| 10.0 ~13.4 | 0.1~0.6 | 6.30 |
| 13.5~14.9 | 0.1~0.5 | 6.75 |
| 15.0~19.9 | 0.1~0.4 | 6.00 |
| 20.0~30.0 | 0.1~0.3 | 6.00 |
Safety Certificate& EMC
GQ07-UKCA 61558+62368 Certificate.pdf
Application: Mobile Phone, Smart Home Appliance
Specification Datasheet Table
| Item | Specification Datasheet Table | Note | |
| Description | Product name | single-output switch power adapter | |
| Product type | Wall mount/Desktop/Interchange | ||
| Model | GQ07-05100-AB/GQ07-05150-AB | ||
| Supply Ability | 1,600,000~1,800,000PCS/month | ||
| Application | as per customer requirments,etc | ||
| Mechanical Performance | Color | Black or White | |
| Dimensions | Subjected to final design | ||
| Output DC Connector | 5.5x2.1x10mm optional | ||
| DC Cord / DC Jack | L=1.2m / 1.5m or Customized | ||
| Plug type | EU ,UK, US, AU, KC, PSE... | ||
| Electrical Performance | Output Voltage & Frequency | 5V | |
| Output Current | 1A/1.5A | ||
| Output Power | 5W/7.5W | ||
| Ripple/Noise |
300mVp-p Max.
|
||
| Input Voltage & Frequency | 90VAC~264VAC, 47~63HZ | ||
| Maximum AC Current | Please refer to the specification datasheet for approval | ||
| Input Inrush Current | 40A(RMS) Max, full load tested @AC230V 50HZ | ||
| Efficiency | VI | ||
| Protection | OVP,OCP,OTP,SCP & Input Protection | ||
| Environmental requirements | Operating Temperature | 0~40 ℃, | |
| Storage Temperature | -40~70 ℃ | ||
| Operating Humidity | 5%~90% Non-condensing | ||
| Storage Humidity | 5%~90% Non-condensing | ||
| Reliability | Warranty | 2 year (about 2.28 years for 24-hour-operation a day) | |
| MTBF | ＞20,000 hour | ||
| Insulation Resistanc | ＞ 30MΩ@500VDC; 60S | ||
| Hi-Pot | Meet different safety standard | ||
| Leakage Current | 0.25mA Max, full load tested @AC230V 50HZ | ||
| Compliance with EU directives law & regulations | RoHS,REACH,PAHS | ||
| Safety Standard | Certificate | UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR | |
| Standards | IEC61558/IEC60335/IEC61347/ETL1310/ IEC62368,GB4943, GB4706,etc... | ||
| EMC | EN55014-1/EN55014-2 compliance | ||
| ESD | (Air discharge@ 8KV, Contact discharge@ 6KV,(IEC61000-4-2) | ||
| Surge | ±1KV @ common or different mode | ||
FAQ
1. What safety certificate do you have?
We got safety standards inculding but not limited to
UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR,NOM etc.
2. How about the energy efficiency?
All our adapters can meet level VI efficiency and ROHS,REACH compatible.
3. How about sample? For free?
Yes, Generally we offer 3-5PCS samples for your test FOR FREE, delivery cost collect.
4. How long can we get samples?
3 ~ 5 days for regular adapters or led driver.
And 20-25 work days for mass production.
5. What is MOQ?
Generally, our MOQ for each model is 1000PCS, we can discuss in details if you have special requirements,
like big quantity for the whole order but small quantity for trial order of each model.
6. Do you accept OEM/ODM service? Can I have my own logo on the adapter?
Yes, OEM or ODM is available.
7. What Customers you company have Served?
Customer groups include well-known brand companies especially in small household appliances & Led lighting industry such as
Shark,invitop,Wilit, Interplus,ELECTROLUX,LG,Xiaomi,Haier,Midea,covering many countries and regions around the world.
8. Can you put my own logo for our order?
Yes, we can produce order with your own logo/brand, Once we get your authorization license of the trademark.
9. How about the warranty of your product?
Generally we offer 2-year warranty(about 2.28 years for 24-hour-operation a day) for adapters and led drivers.
Quality is the most important for long-term business partnership,
and it is also our company aim to offer high quality and guaranteed products to help our clients grow business and expand their target markets.
10. What is the application for your switching power adapter?
Our adapters are widely used in home appliance and industrial Sweeper, scrubber, vacuum cleaner, dehumidifier, air purifier, humidifier, aroma diffuser, air cooler, Sealing machine, vacuum packaging machine, LED lighting, plant light, power tool products, smart wear,IT equipment and security equipment etc.
