|Efficiency:||VI||EU Directive:||RoHS, REACH,PAHS|
|Protection:||OVP,OCP,OTP,SCP & Input Protection||Warranty:||2 Year (about 2.28 Years For 24-hour-operation A Day)|
10.4W 13v dc power supply,
10.4W 800mA 13v dc power supply,
800mA 10.4W Wall Mount AC Adapter

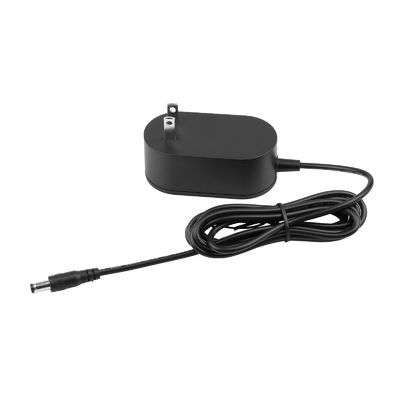

800mA 10.4W 13V DC Power Supply Wall Mount AC Adapter For UL Market
AC adapters are used with electrical devices that require power but do not contain internal components to derive the required voltage and power from mains power. The internal circuitry of an external power supply is very similar to the design that would be used for a built-in or internal supply.
|Model Name||Output Voltage(VDC)||Output Current (A)||Output Power(W )|
|GB/BZ=ANALOG Company Code||13.1~18.0||0.01~1.15||15.00|
|15=Out Power 15W Series||18.1~24.9||0.01~0.8||15.00|
Certificate inculding not not limit to:
Application: sweep machine, sweeper
|Application Field||Products including but not limited to|
|Robot Vacuum Cleaner, Floor Cleaning Robots,Window Cleaning Robots,Steam Mops,Electric Mops,Cold-air Cooler,Water Purifier,Air purifier,Dehumidifier, Humidifier,Aroma Diffuser,Mosquito Killer,Ice Maker|
|Led Lighting(IEC61347)||Led Power Supply,Led Driver,Table/Desk Lamp,Led Strip Light,Led Desktop Fan,Grow Light,Led Plant Growth Lamp,OSRAM led,|
IT Communications Equipment
|Router,Switch,Mobile phones,Tablet PC,Network, Radio and Television Equipment,PoE...|
|Audio Equipment(IEC62368)||Speakers,Recording Machine,Microphone|
|Video Equipment(IEC62368)||STB TV box,Computers|
|Security Device(IEC62368)||Monitor,CCTV cameras,|
Household and Similar
|Electrical devices with lithium battery power supply requires battery charge adapter|
|Power Units( ETL1310)||Electronic, electrical, mechanical or electron-mechanical products|
|Other Industries||UAV,Drones,Balance Car,Unicycle,Segway,PS4 Game Players Home Healthcare ,Cash registers/Counting Machine,Counterfeit Detector|
|Product Model Identification|
|①||Company code for Analog|
|②||Output power rating series code|
|③||Output voltage code|
|④||Output current code|
|For example: Product model BZ15-130080-AU,stands for Analog brand swithing adapter with 15W series power,13V output voltage,800mA Output current, plug type is US Plug|
Specification Datasheet Table
|Item||Specification Datasheet Table||Note|
|Description||Product name||single-output switch power adapter|
|Product type||Wall mount/Desktop/Interchange||Custom Design Available|
|Application||as per customer requirments,etc||Custom Design Available|
|Mechanical Performance||Color||Black or White||Custom Design Available|
|Dimensions||Subjected to final design||Custom Design Available|
|Output DC Connector||5.5x2.1x10mm optional||Custom Design Available|
|DC Cord / DC Jack||L=1.2m / 1.5m or Customized||Custom Design Available|
|Plug type||EU ,UK, US, AU, KC, PSE...||Custom Design Available|
|Electrical Performance||Output Voltage & Frequency||13V|
|Custom Design Available|
|Input Voltage & Frequency||90VAC~264VAC, 47~63HZ|
|Maximum AC Current||Please refer to the specification datasheet for approval|
|Input Inrush Current||40A(RMS) Max, full load tested @AC230V 50HZ|
|Efficiency||VI||Custom Design Available|
|Protection||OVP,OCP,OTP,SCP & Input Protection|
|Environmental requirements||Operating Temperature||0~40 ℃,|
|Storage Temperature||-40~70 ℃|
|Operating Humidity||5%~90% Non-condensing|
|Storage Humidity||5%~90% Non-condensing|
|Reliability||Warranty||2 year (about 2.28 years for 24-hour-operation a day)||Custom Design Available|
|Insulation Resistanc||＞ 30MΩ@500VDC; 60S||Custom Design Available|
|Hi-Pot||Meet different safety standard|
|Leakage Current||0.25mA Max, full load tested @AC230V 50HZ|
|Compliance with EU directives law & regulations||RoHS,REACH,PAHS|
|Safety Standard||Certificate||UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR||Custom Design Available|
|Standards||IEC61558/IEC60335/IEC61347/ETL1310/ IEC62368,GB4943, GB4706,etc...||Custom Design Available|
|ESD||(Air discharge@ 8KV, Contact discharge@ 6KV,(IEC61000-4-2)||Custom Design Available|
|Surge||±1KV @ common or different mode||Custom Design Available|
|Plug Type Identification|
|Series No.||Plug Type Style||Code||Description|
|A_||Front style plug||AU||US front style AC Plug|
|AA||Austrialian front style AC Plug|
|AG||European front style AC Plug|
|AJ||Japanese front style AC Plug|
|AK||Korean front style AC Plug|
|AB||British front style AC Plug|
|AR||Russian front style AC Plug|
|AX||Interchangeable front style AC Plug|
|AC||Chinese front style AC Plug|
|AA1||Argentina front style AC Plug|
|AUM||Mexico front style AC plug|
|H_or C_||Side style plug||HU/CU||US side style AC Plug|
|HA/CA||Austrialian side style AC Plug|
|HG/CG||European side style AC Plug|
|HJ/CJ||Japanese side style AC Plug|
|HK/CK||Korean side style AC Plug|
|HB/CB||British side style AC Plug|
|HR/CR||Russian side style AC Plug|
|HX/CX||Interchangeable side style AC Plug|
|HC/CC||Chinese side style AC Plug|
|Z_||Inline style plug||ZU||US inline style AC Plug|
|ZA||Austrialian inline style AC Plug|
|ZG||European inline style AC Plug|
|ZJ||Japanese inline style AC Plug|
|ZK||Korean inline style AC Plug|
|ZB||British inline style AC Plug|
|ZR||Russian inline style AC Plug|
|ZX||Interchangeable inline style AC Plug|
|ZC||Chinese inline style AC Plug|
|E _||Applicance type||E1||Input with type C14/C6 used|
|E2||Desk-top input with type C8 used|
|E3||Fixed power cord ungrounded|
|E4||Fixed power cord grounded|
1. Are you a manufacturer or trading company?
We are a factory with 12000 ㎡ plant and more than 400 staffs in 8 production lines
Currently there are 2 production lines are expecting for orders,
Which means 1,600,000~1,800,000PCS monthly production capacity available for your orders.
2. Why choose us?
We are one-stop solution for high quality power adapter & switching power supply.
Fomerly as a wholly-owned subsidiary of "Dongguan Gangqi Group" which R&D & manufacture power adapters since 2004.
3. What safety certificate do you have?
We got safety standards inculding but not limited to
UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR,NOM etc.
4. How about the energy efficiency?
All our adapters can meet level VI efficiency and ROHS,REACH compatible.
5. How about sample? For free?
Yes, Generally we offer 3-5PCS samples for your test FOR FREE, delivery cost collect.
6. How long can we get samples?
3 ~ 5 days for regular adapters or led driver.
And 20-25 work days for mass production.
7. What is MOQ?
Generally, our MOQ for each model is 1000PCS, we can discuss in details if you have special requirements,
like big quantity for the whole order but small quantity for trial order of each model.
8. Do you accept OEM/ODM service? Can I have my own logo on the adapter?
Yes, OEM or ODM is available.
9. What Customers you company have Served?
Customer groups include well-known brand companies especially in small household appliances & Led lighting industry such as
Shark,invitop,Wilit, Interplus,ELECTROLUX,LG,Xiaomi,Haier,Midea,covering many countries and regions around the world.
10. Can you put my own logo for our order?
Yes, we can produce order with your own logo/brand, Once we get your authorization license of the trademark.
11. How about the warranty of your product?
Generally we offer 2-year warranty(about 2.28 years for 24-hour-operation a day) for adapters and led drivers.
Quality is the most important for long-term business partnership,
and it is also our company aim to offer high quality and guaranteed products to help our clients grow business and expand their target markets.
12. How can I finish my payment?
T/T, L/C, Western Union are all acceptable, PayPal is also OK.
13. How can I get detailed specifications about this product? Do you have catalogue and price list?
Basically, specifications,& price are vary,because each customer requires different adatpers model for different adaptability to products
Welcome to contact us for further cooperation via any contact ways at anytime!
14. What is shipping method?
Samples will be sent via DHL, UPS, FedEX, TNT, EMS, etc. while bulk goods will be sent by sea or air.
If you have familiar forwarders in China, we can send our goods there to save your cost.
15. What is the application for your switching power adapter?
Our adapters are widely used in home appliance and industrial Sweeper, scrubber, vacuum cleaner, dehumidifier, air purifier, humidifier, aroma diffuser, air cooler, Sealing machine, vacuum packaging machine, LED lighting, plant light, power tool products, smart wear,IT equipment and security equipment etc.
