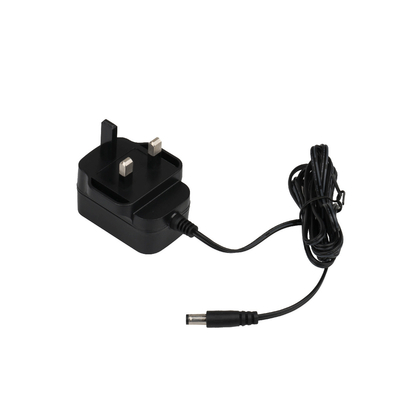

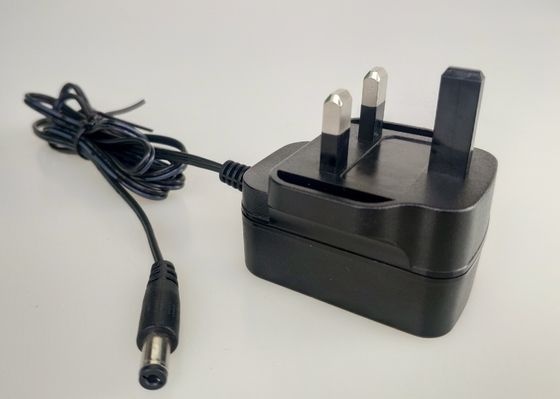

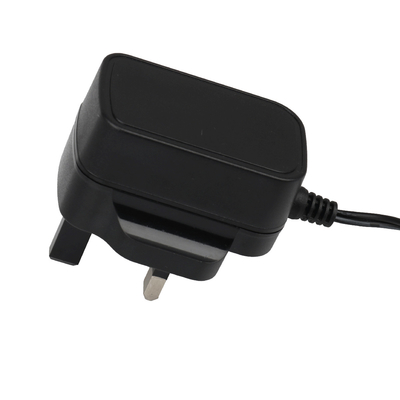

0.6A 14.4W 24 Volt AC DC Power Adapters BS Plug Household Use For Humidifier

0.6A 14.4W 24 Volt AC DC Power Adapters BS Plug Household Use For Humidifier
0.6A 14.4W 24 Volt AC DC Power Adapters BS Plug Household Use For Humidifier 0.6A 14.4W 24 Volt AC DC Power Adapters BS Plug Household Use For Humidifier 0.6A 14.4W 24 Volt AC DC Power Adapters BS Plug Household Use For Humidifier

Large Image :  0.6A 14.4W 24 Volt AC DC Power Adapters BS Plug Household Use For Humidifier

Product Details:
Place of Origin: China
Brand Name: Analog
Certification: SAA,A-Tick、C-tick、DOFT、QAS、SAI
Model Number: GQ12-240060-AB
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: 1.8-2.5USD/PCS
Packaging Details: Carton
Delivery Time: 10-25 work days
Payment Terms: T/T, L/C
Supply Ability: 1,600,000~1,800,000PCS/Month

0.6A 14.4W 24 Volt AC DC Power Adapters BS Plug Household Use For Humidifier

Description
Certificate: SAA,A-Tick、C-tick、DOFT、QAS、SAI Output: 24V,0.6A,14.4W
Efficiency: VI EU Directive: RoHS, REACH,PAHS
Protection: OVP,OCP,OTP,SCP & Input Protection Warranty: 2 Year (about 2.28 Years For 24-hour-operation A Day)
High Light:

14.4W 0.6A AC DC Power Adapters

,

0.6A AC DC Power Adapters

,

0.6A 14.4W 24 volt ac dc adapter

0.6A 14.4W 24 Volt AC DC Power Adapters BS Plug Household Use For Humidifier



Certificate:



GQ12 GS Certificate.pdf



Application: humidifier,aroma diffuser.

Application Field Products including but not limited to

Home/Household Appliances

(IEC61558)

Robot Vacuum Cleaner, Floor Cleaning Robots,Window Cleaning Robots,Steam Mops,Electric Mops,Cold-air Cooler,Water Purifier,Air purifier,Dehumidifier, Humidifier,Aroma Diffuser,Mosquito Killer,Ice Maker
Led Lighting(IEC61347) Led Power Supply,Led Driver,Table/Desk Lamp,Led Strip Light,Led Desktop Fan,Grow Light,Led Plant Growth Lamp,OSRAM led,

IT Communications Equipment

(IEC62368=IEC60950+IEC60065)

Router,Switch,Mobile phones,Tablet PC,Network, Radio and Television Equipment,PoE...
Audio Equipment(IEC62368) Speakers,Recording Machine,Microphone
Video Equipment(IEC62368) STB TV box,Computers
Security Device(IEC62368) Monitor,CCTV cameras,

Household and Similar

Electrical Appliances

(IEC60335)

Electrical devices with lithium battery power supply requires battery charge adapter
Power Units( ETL1310) Electronic, electrical, mechanical or electron-mechanical products
Other Industries UAV,Drones,Balance Car,Unicycle,Segway,PS4 Game Players Home Healthcare ,Cash registers/Counting Machine,Counterfeit Detector







Product Model Identification
GQ/BZ- 12 xxx yyy ww z
Company code for Analog
Output power rating series code
Output voltage code
Output current code
Plug Type
Appliance
For example: Product model GQ12-240050-AB,stands for Analog brand swithing adapter with 12W output power,24V output voltage,500mA Output current, plug type is BS Plug



Specification Datasheet Table



Item Specification Datasheet Table Note
Description Product name single-output switch power adapter
Product type Wall mount/Desktop/Interchange Custom Design Available
Model GQ12-190060-AB
Supply Ability 1,600,000~1,800,000PCS/month
Application as per customer requirments,etc Custom Design Available
Mechanical Performance Color Black or White Custom Design Available
Dimensions Subjected to final design Custom Design Available
Output DC Connector 5.5x2.1x10mm optional Custom Design Available
DC Cord / DC Jack L=1.2m / 1.5m or Customized Custom Design Available
Plug type EU ,UK, US, AU, KC, PSE... Custom Design Available
Electrical Performance Output Voltage & Frequency 19V
Output Current 0.6A
Output Power 12W
Ripple/Noise
300mVp-p Max.
Custom Design Available
Input Voltage & Frequency 90VAC~264VAC, 47~63HZ
Maximum AC Current Please refer to the specification datasheet for approval
Input Inrush Current 40A(RMS) Max, full load tested @AC230V 50HZ
Efficiency VI Custom Design Available
Protection OVP,OCP,OTP,SCP & Input Protection
Environmental requirements Operating Temperature 0~40 ℃,
Storage Temperature -40~70 ℃
Operating Humidity 5%~90% Non-condensing
Storage Humidity 5%~90% Non-condensing
Reliability Warranty 2 year (about 2.28 years for 24-hour-operation a day) Custom Design Available
MTBF >20,000 hour
Insulation Resistanc > 30MΩ@500VDC; 60S Custom Design Available
Hi-Pot Meet different safety standard
Leakage Current 0.25mA Max, full load tested @AC230V 50HZ
Compliance with EU directives law & regulations RoHS,REACH,PAHS
Safety Standard Certificate UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR Custom Design Available
StandardsIEC61558/IEC60335/IEC61347/ETL1310/ IEC62368,GB4943, GB4706,etc... Custom Design Available
EMC EN55014-1/EN55014-2 compliance
ESD (Air discharge@ 8KV, Contact discharge@ 6KV,(IEC61000-4-2) Custom Design Available
Surge ±1KV @ common or different mode Custom Design Available





Plug Type Identification
Series No. Plug Type Style Code Description
A_ Front style plug AU US front style AC Plug
AA Austrialian front style AC Plug
AG European front style AC Plug
AJ Japanese front style AC Plug
AK Korean front style AC Plug
AB British front style AC Plug
AR Russian front style AC Plug
AX Interchangeable front style AC Plug
AC Chinese front style AC Plug
ABS Singaporean plug(changeable)
AA1 Argentina front style AC Plug
AUM Mexico front style AC plug
H_or C_ Side style plug HU/CU US side style AC Plug
HA/CA Austrialian side style AC Plug
HG/CG European side style AC Plug
HJ/CJ Japanese side style AC Plug
HK/CK Korean side style AC Plug
HB/CB British side style AC Plug
HR/CR Russian side style AC Plug
HX/CX Interchangeable side style AC Plug
HC/CC Chinese side style AC Plug
Z_ Inline style plug ZU US inline style AC Plug
ZA Austrialian inline style AC Plug
ZG European inline style AC Plug
ZJ Japanese inline style AC Plug
ZK Korean inline style AC Plug
ZB British inline style AC Plug
ZR Russian inline style AC Plug
ZX Interchangeable inline style AC Plug
ZC Chinese inline style AC Plug
E _ Applicance type E1 Input with type C14/C6 used
E2 Desk-top input with type C8 used
E3 Fixed power cord ungrounded
E4 Fixed power cord grounded



0.6A 14.4W 24 Volt AC DC Power Adapters BS Plug Household Use For Humidifier 0

FAQ







1. Can you put my own logo for our order?
Yes, we can produce order with your own logo/brand, Once we get your authorization license of the trademark.



2. How about the warranty of your product?
Generally we offer 2-year warranty(about 2.28 years for 24-hour-operation a day) for adapters and led drivers.
Quality is the most important for long-term business partnership,
and it is also our company aim to offer high quality and guaranteed products to help our clients grow business and expand their target markets.



3. How can I finish my payment?
T/T, L/C, Western Union are all acceptable, PayPal is also OK.



4. How can I get detailed specifications about this product? Do you have catalogue and price list?
Basically, specifications,& price are vary,because each customer requires different adatpers model for different adaptability to products
Welcome to contact us for further cooperation via any contact ways at anytime!



5. What is shipping method?
Samples will be sent via DHL, UPS, FedEX, TNT, EMS, etc. while bulk goods will be sent by sea or air.
If you have familiar forwarders in China, we can send our goods there to save your cost.


6. What is the application for your switching power adapter?

Our adapters are widely used in home appliance and industrial Sweeper, scrubber, vacuum cleaner, dehumidifier, air purifier, humidifier, aroma diffuser, air cooler, Sealing machine, vacuum packaging machine, LED lighting, plant light, power tool products, smart wear,IT equipment and security equipment etc.
