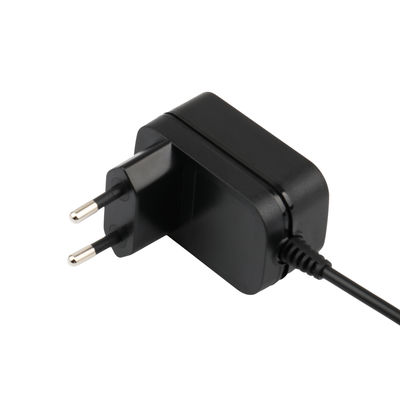

Output 12Vdc 1000mA,12W Wall-mounted Power Adapters for EU plug Smart Home Applicance

Output 12Vdc 1000mA,12W Wall-mounted Power Adapters  for EU plug Smart Home Applicance
Output 12Vdc 1000mA,12W Wall-mounted Power Adapters  for EU plug Smart Home Applicance Output 12Vdc 1000mA,12W Wall-mounted Power Adapters  for EU plug Smart Home Applicance Output 12Vdc 1000mA,12W Wall-mounted Power Adapters  for EU plug Smart Home Applicance

Large Image :  Output 12Vdc 1000mA,12W Wall-mounted Power Adapters for EU plug Smart Home Applicance

Product Details:
Place of Origin: China
Brand Name: Analog
Certification: UKCA/CE
Model Number: GQ12-1200100-AB
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: 1.6-2.5USD/PCS
Packaging Details: Carton
Delivery Time: 10-25 work days
Payment Terms: T/T, L/C
Supply Ability: 1,600,000~1,800,000PCS/Month

Output 12Vdc 1000mA,12W Wall-mounted Power Adapters for EU plug Smart Home Applicance

Description
Output: 12W,12V,1A Efficiency: VI
EU Directive: RoHS, REACH,PAHS Protection: OVP,OCP,OTP,SCP & Input Protection
Warranty: 2 Year (about 2.28 Years For 24-hour-operation A Day) Certificate: SAA,A-Tick、C-tick、DOFT、QAS、SAI

Output 12Vdc 1000mA,12W Wall-mounted Power Adapters for EU plug Smart Home Applicance





Safety Certificate:



GQ12 CE Certificate.pdf



GQ12 UKCA Certificate.pdf



Out Put Features



Model Name Output Voltage(VDC) Output Current (A) Output Power(W )
GQ/BZ12-XXX-YYY-WW 5 0.01~2.1 10.50
GB/BZ=ANALOG Company Code 5.1~7.9 0.01~1.6 12.00
12=Out Power 12W Series 8.0~13.0 0.01~1.2 12.00
XXX=Output Voltage 13.1~16.9 0.01~0.8 12.00
YYY=Output Current 17.0~24 0.01~0.7 12.00
WW=Plug Type



Application: sweep machine, sweeper



Application Field Products including but not limited to

Home/Household Appliances

(IEC61558)

Robot Vacuum Cleaner, Floor Cleaning Robots,Window Cleaning Robots,Steam Mops,Electric Mops,Cold-air Cooler,Water Purifier,Air purifier,Dehumidifier, Humidifier,Aroma Diffuser,Mosquito Killer,Ice Maker
Led Lighting(IEC61347) Led Power Supply,Led Driver,Table/Desk Lamp,Led Strip Light,Led Desktop Fan,Grow Light,Led Plant Growth Lamp,OSRAM led,

IT Communications Equipment

(IEC62368=IEC60950+IEC60065)

Router,Switch,Mobile phones,Tablet PC,Network, Radio and Television Equipment,PoE...
Audio Equipment(IEC62368) Speakers,Recording Machine,Microphone
Video Equipment(IEC62368) STB TV box,Computers
Security Device(IEC62368) Monitor,CCTV cameras,

Household and Similar

Electrical Appliances

(IEC60335)

Electrical devices with lithium battery power supply requires battery charge adapter
Power Units( ETL1310) Electronic, electrical, mechanical or electron-mechanical products
Other Industries UAV,Drones,Balance Car,Unicycle,Segway,PS4 Game Players Home Healthcare ,Cash registers/Counting Machine,Counterfeit Detector
Product Model Identification
GQ/BZ- 12 xxx yyy ww z
Company code for Analog
Output power rating series code
Output voltage code
Output current code
Plug Type
Appliance
For example: Product model GQ12-120100-AB,stands for Analog brand swithing adapter with 12W output power,12V output voltage,1000mA Output current, plug type is BS Plug



Specification Datasheet Table



Item Specification Datasheet Table Note
Description Product name single-output switch power adapter
Product type Wall mount/Desktop/Interchange Custom Design Available
Model GQ12-120100-AB
Supply Ability 1,600,000~1,800,000PCS/month
Application as per customer requirments,etc Custom Design Available
Mechanical Performance Color Black or White Custom Design Available
Dimensions Subjected to final design Custom Design Available
Output DC Connector 5.5x2.1x10mm optional Custom Design Available
DC Cord / DC Jack L=1.2m / 1.5m or Customized Custom Design Available
Plug type EU ,UK, US, AU, KC, PSE... Custom Design Available
Electrical Performance Output Voltage & Frequency 19V
Output Current 0.6A
Output Power 12W
Ripple/Noise
300mVp-p Max.
Custom Design Available
Input Voltage & Frequency 90VAC~264VAC, 47~63HZ
Maximum AC Current Please refer to the specification datasheet for approval
Input Inrush Current 40A(RMS) Max, full load tested @AC230V 50HZ
Efficiency VI Custom Design Available
Protection OVP,OCP,OTP,SCP & Input Protection
Environmental requirements Operating Temperature 0~40 ℃,
Storage Temperature -40~70 ℃
Operating Humidity 5%~90% Non-condensing
Storage Humidity 5%~90% Non-condensing
Reliability Warranty 2 year (about 2.28 years for 24-hour-operation a day) Custom Design Available
MTBF >20,000 hour
Insulation Resistanc > 30MΩ@500VDC; 60S Custom Design Available
Hi-Pot Meet different safety standard
Leakage Current 0.25mA Max, full load tested @AC230V 50HZ
Compliance with EU directives law & regulations RoHS,REACH,PAHS
Safety Standard Certificate UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR Custom Design Available
StandardsIEC61558/IEC60335/IEC61347/ETL1310/ IEC62368,GB4943, GB4706,etc... Custom Design Available
EMC EN55014-1/EN55014-2 compliance
ESD (Air discharge@ 8KV, Contact discharge@ 6KV,(IEC61000-4-2) Custom Design Available
Surge ±1KV @ common or different mode Custom Design Available





Plug Type Identification
Series No. Plug Type Style Code Description
A_ Front style plug AU US front style AC Plug
AA Austrialian front style AC Plug
AG European front style AC Plug
AJ Japanese front style AC Plug
AK Korean front style AC Plug
AB British front style AC Plug
AR Russian front style AC Plug
AX Interchangeable front style AC Plug
AC Chinese front style AC Plug
ABS Singaporean plug(changeable)
AA1 Argentina front style AC Plug
AUM Mexico front style AC plug
H_or C_ Side style plug HU/CU US side style AC Plug
HA/CA Austrialian side style AC Plug
HG/CG European side style AC Plug
HJ/CJ Japanese side style AC Plug
HK/CK Korean side style AC Plug
HB/CB British side style AC Plug
HR/CR Russian side style AC Plug
HX/CX Interchangeable side style AC Plug
HC/CC Chinese side style AC Plug
Z_ Inline style plug ZU US inline style AC Plug
ZA Austrialian inline style AC Plug
ZG European inline style AC Plug
ZJ Japanese inline style AC Plug
ZK Korean inline style AC Plug
ZB British inline style AC Plug
ZR Russian inline style AC Plug
ZX Interchangeable inline style AC Plug
ZC Chinese inline style AC Plug
E _ Applicance type E1 Input with type C14/C6 used
E2 Desk-top input with type C8 used
E3 Fixed power cord ungrounded
E4 Fixed power cord grounded



Output 12Vdc 1000mA,12W Wall-mounted Power Adapters  for EU plug Smart Home Applicance 0

FAQ



1.Are you a manufacturer or trading company?

We are a factory with 12000 ㎡ plant and more than 400 staffs in 8 production lines
Currently there are 2 production lines are expecting for orders,
Which means 1,600,000~1,800,000PCS monthly production capacity available for your orders.



2.Why choose us?
We are one-stop solution for high quality power adapter & switching power supply.
Fomerly as a wholly-owned subsidiary of "Dongguan Gangqi Group" which R&D & manufacture power adapters since 2004.


3.What safety certificate do you have?

We got safety standards inculding but not limited to
UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR,NOM etc.



4.How about the energy efficiency?
All our adapters can meet level VI efficiency and ROHS,REACH compatible.



5.How about sample? For free?
Yes, Generally we offer 3-5PCS samples for your test FOR FREE, delivery cost collect.

6.How long can we get samples?
3 ~ 5 days for regular adapters or led driver.
And 20-25 work days for mass production.



7.What is MOQ?
Generally, our MOQ for each model is 1000PCS, we can discuss in details if you have special requirements,
like big quantity for the whole order but small quantity for trial order of each model.



8.Do you accept OEM/ODM service? Can I have my own logo on the adapter?
Yes, OEM or ODM is available.



9. What Customers you company have Served?
Customer groups include well-known brand companies especially in small household appliances & Led lighting industry such as
Shark,invitop,Wilit, Interplus,ELECTROLUX,LG,Xiaomi,Haier,Midea,covering many countries and regions around the world.



10. Can you put my own logo for our order?
Yes, we can produce order with your own logo/brand, Once we get your authorization license of the trademark.
