Product Details:
|
| Certificate: | UL/FCC | Output: | 22.5W,9VDC 2.5A |
|---|---|---|---|
| Efficiency: | VI | EU Directive: | RoHS, REACH,PAHS |
| Protection: | OVP,OCP,OTP,SCP & Input Protection | Warranty: | 2 Year (about 2.28 Years For 24-hour-operation A Day) |
| Highlight: | 24W 9V AC DC Power Adapters,9V 2.5A AC DC Power Adapters |
||

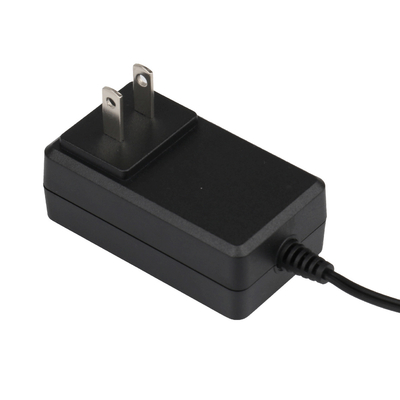

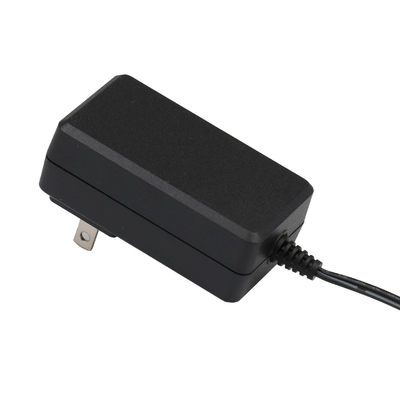

9V 2.5A AC DC Power Adapters Meet ETL1310 Safety Standard
24W Series ETL1310/UL1310 Certificate
Model Description:
| Model Name | Output Voltage(VDC) | Output Current (A) | Output Power(W ) |
| GQ/BZ024-XXX-YYY-WW | 5.0~7 | 0.01~3.00 | 23.70 |
| GB/BZ=ANALOG Company Code | 8.0~11.0 | 0.01~3.00 | 27.00 |
| 24=Out Power 24W Series | 11.1~15.0 | 0.01~2.50 | 30.00 |
| XXX=Output Voltage | 15.1~24.0 | 0.01~1.50 | 30.00 |
| YYY=Output Current | 24.1~32.0 | 0.01~1.24 | 30.00 |
| WW=Plug Type |
Application:dehumidifier,smart devices
| Application Field | Products including but not limited to |
|
Home/Household Appliances (IEC61558) |
Robot Vacuum Cleaner, Floor Cleaning Robots,Window Cleaning Robots,Steam Mops,Electric Mops,Cold-air Cooler,Water Purifier,Air purifier,Dehumidifier, Humidifier,Aroma Diffuser,Mosquito Killer,Ice Maker |
| Led Lighting(IEC61347) | Led Power Supply,Led Driver,Table/Desk Lamp,Led Strip Light,Led Desktop Fan,Grow Light,Led Plant Growth Lamp,OSRAM led, |
|
IT Communications Equipment (IEC62368=IEC60950+IEC60065) |
Router,Switch,Mobile phones,Tablet PC,Network, Radio and Television Equipment,PoE... |
| Audio Equipment(IEC62368) | Speakers,Recording Machine,Microphone |
| Video Equipment(IEC62368) | STB TV box,Computers |
| Security Device(IEC62368) | Monitor,CCTV cameras, |
|
Household and Similar Electrical Appliances (IEC60335) |
Electrical devices with lithium battery power supply requires battery charge adapter |
| Power Units( ETL1310) | Electronic, electrical, mechanical or electron-mechanical products |
| Other Industries | UAV,Drones,Balance Car,Unicycle,Segway,PS4 Game Players Home Healthcare ,Cash registers/Counting Machine,Counterfeit Detector |
| Product Model Identification | |||||
| GQ/BZ- | 24 | xxx | yyy | ww | z |
| ① | ② | ③ | ④ | ⑤ | ⑥ |
| ① | Company code for Analog | ||||
| ② | Output power rating series code | ||||
| ③ | Output voltage code | ||||
| ④ | Output current code | ||||
| ⑤ | Plug Type | ||||
| ⑥ | Appliance | ||||
| For example: Product 24W output power,9V output voltage,2.5A Output current, plug type is US Plug | |||||
Specification Datasheet Table
| Item | Specification Datasheet Table | Note | |
| Description | Product name | single-output switch power adapter | |
| Product type | Wall mount/Desktop/Interchange | Custom Design Available | |
| Model | GQ24-090250-AG | ||
| Supply Ability | 1,600,000~1,800,000PCS/month | ||
| Application | as per customer requirments,etc | Custom Design Available | |
| Mechanical Performance | Color | Black or White | Custom Design Available |
| Dimensions | Subjected to final design | Custom Design Available | |
| Output DC Connector | 5.5x2.1x10mm optional | Custom Design Available | |
| DC Cord / DC Jack | L=1.2m / 1.5m or Customized | Custom Design Available | |
| Plug type | EU ,UK, US, AU, KC, PSE... | Custom Design Available | |
| Electrical Performance | Output Voltage & Frequency | 9V | |
| Output Current | 2.5A | ||
| Output Power | 22.5W | ||
| Ripple/Noise |
300mVp-p Max.
|
Custom Design Available | |
| Input Voltage & Frequency | 90VAC~264VAC, 47~63HZ | ||
| Maximum AC Current | Please refer to the specification datasheet for approval | ||
| Input Inrush Current | 40A(RMS) Max, full load tested @AC230V 50HZ | ||
| Efficiency | VI | Custom Design Available | |
| Protection | OVP,OCP,OTP,SCP & Input Protection | ||
| Environmental requirements | Operating Temperature | 0~40 ℃, | |
| Storage Temperature | -40~70 ℃ | ||
| Operating Humidity | 5%~90% Non-condensing | ||
| Storage Humidity | 5%~90% Non-condensing | ||
| Reliability | Warranty | 2 year (about 2.28 years for 24-hour-operation a day) | Custom Design Available |
| MTBF | ＞20,000 hour | ||
| Insulation Resistanc | ＞ 30MΩ@500VDC; 60S | Custom Design Available | |
| Hi-Pot | Meet different safety standard | ||
| Leakage Current | 0.25mA Max, full load tested @AC230V 50HZ | ||
| Compliance with EU directives law & regulations | RoHS,REACH,PAHS | ||
| Safety Standard | Certificate | UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR | Custom Design Available |
| Standards | IEC61558/IEC60335/IEC61347/ETL1310/ IEC62368,GB4943, GB4706,etc... | Custom Design Available | |
| EMC | EN55014-1/EN55014-2 compliance | ||
| ESD | (Air discharge@ 8KV, Contact discharge@ 6KV,(IEC61000-4-2) | Custom Design Available | |
| Surge | ±1KV @ common or different mode | Custom Design Available | |
| Plug Type Identification | |||
| Series No. | Plug Type Style | Code | Description |
| A_ | Front style plug | AU | US front style AC Plug |
| AA | Austrialian front style AC Plug | ||
| AG | European front style AC Plug | ||
| AJ | Japanese front style AC Plug | ||
| AK | Korean front style AC Plug | ||
| AB | British front style AC Plug | ||
| AR | Russian front style AC Plug | ||
| AX | Interchangeable front style AC Plug | ||
| AC | Chinese front style AC Plug | ||
| ABS | Singaporean plug(changeable) | ||
| AA1 | Argentina front style AC Plug | ||
| AUM | Mexico front style AC plug | ||
| H_or C_ | Side style plug | HU/CU | US side style AC Plug |
| HA/CA | Austrialian side style AC Plug | ||
| HG/CG | European side style AC Plug | ||
| HJ/CJ | Japanese side style AC Plug | ||
| HK/CK | Korean side style AC Plug | ||
| HB/CB | British side style AC Plug | ||
| HR/CR | Russian side style AC Plug | ||
| HX/CX | Interchangeable side style AC Plug | ||
| HC/CC | Chinese side style AC Plug | ||
| Z_ | Inline style plug | ZU | US inline style AC Plug |
| ZA | Austrialian inline style AC Plug | ||
| ZG | European inline style AC Plug | ||
| ZJ | Japanese inline style AC Plug | ||
| ZK | Korean inline style AC Plug | ||
| ZB | British inline style AC Plug | ||
| ZR | Russian inline style AC Plug | ||
| ZX | Interchangeable inline style AC Plug | ||
| ZC | Chinese inline style AC Plug | ||
| E _ | Applicance type | E1 | Input with type C14/C6 used |
| E2 | Desk-top input with type C8 used | ||
| E3 | Fixed power cord ungrounded | ||
| E4 | Fixed power cord grounded | ||
