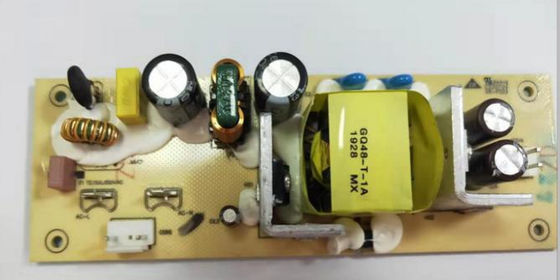

UL Approve Open Frame Switching Power Supply 12V 3.75A With 2 Pin Socket

UL Approve Open Frame Switching Power Supply 12V 3.75A With 2 Pin Socket
UL Approve Open Frame Switching Power Supply 12V 3.75A With 2 Pin Socket UL Approve Open Frame Switching Power Supply 12V 3.75A With 2 Pin Socket

Large Image :  UL Approve Open Frame Switching Power Supply 12V 3.75A With 2 Pin Socket

Product Details:
Place of Origin: China
Brand Name: Analog
Certification: UL /FCC
Model Number: GQ48-120375-OP
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: Carton
Delivery Time: 10-25 work days
Payment Terms: T/T, L/C
Supply Ability: 1,600,000~1,800,000PCS/Month

UL Approve Open Frame Switching Power Supply 12V 3.75A With 2 Pin Socket

Description
Efficiency Level: VI Output Power: 48W
Output Voltage: 12V Output Current: 3.75A
High Light:

UL Open Frame Switching Power Supply

,

12V 3.75A Open Frame Switching Power Supply

,

UL 12V 3.75A Power Supply

12.0V 3.75A Open Frame Customized for Switching Power With 2 Pin Socket





Description



Model Name Output Voltage(VDC) Output Current (A) Output Power(W )
GQ/BZ48-XXX-YYY-WW 5.0~15.0 0.01~5.00 60.00
GB/BZ=ANALOG Company Code 15.1~30.0 0.01~3.97 60.00
48=Out Power 48W Series 30.1~56.0 0.01~1.99 60.48
XXX=Output Voltage
YYY=Output Current
WW=Plug Type

Features

  • 100-240VAC Universal Input
  • Regulated Output with Low Ripple Noise
  • Safety Agency Requirements and EMI/EMS Certified
  • Private Label Marking Available
  • Modified and Custom Designs Available
  • 2 Year Warranty
  • Minimum Order: Negotiable
  • OEM/ODM Product, Branded Product, Buyer's Label Offered

Safety Approvals

For USA - CB / UL / ETL / FCC / PSE / BSMI

For Europe & UK - CB / T-mark(TÜV) / CE

For Australia - CB / RCM



Applications



Application Field Products including but not limited to

Home/Household Appliances

(IEC61558)

Robot Vacuum Cleaner, Floor Cleaning Robots,Window Cleaning Robots,Steam Mops,Electric Mops,Cold-air Cooler,Water Purifier,Air purifier,Dehumidifier, Humidifier,Aroma Diffuser,Mosquito Killer,Ice Maker
Led Lighting(IEC61347) Led Power Supply,Led Driver,Table/Desk Lamp,Led Strip Light,Led Desktop Fan,Grow Light,Led Plant Growth Lamp,OSRAM led,

IT Communications Equipment

(IEC62368=IEC60950+IEC60065)

Router,Switch,Mobile phones,Tablet PC,Network, Radio and Television Equipment,PoE...
Audio Equipment(IEC62368) Speakers,Recording Machine,Microphone
Video Equipment(IEC62368) STB TV box,Computers
Security Device(IEC62368) Monitor,CCTV cameras,

Household and Similar

Electrical Appliances

(IEC60335)

Electrical devices with lithium battery power supply requires battery charge adapter
Power Units( ETL1310) Electronic, electrical, mechanical or electron-mechanical products
Other Industries UAV,Drones,Balance Car,Unicycle,Segway,PS4 Game Players Home Healthcare ,Cash registers/Counting Machine,Counterfeit Detector



Specification Datasheet Table

Item Specification Datasheet Table Note
Description Product name Open Frame
Product type Wall mount  Custom Design Available
Model GQ48-120375-OP
Supply Ability 1,600,000~1,800,000PCS/month
Application as per customer requirments,etc Custom Design Available
Mechanical Performance Color Black or White Custom Design Available
Dimensions Subjected to final design Custom Design Available
Output DC Connector 5.5x2.1x10mm optional Custom Design Available
DC Cord / DC Jack L=1.2m / 1.5m or Customized Custom Design Available
Plug type EU ,UK, US, AU, KC, PSE... Custom Design Available
Electrical Performance Output Voltage  12V
Output Current 3.75A
Output Power 48W
Output Ripple Voltage Please refer to the specification datasheet for approval Custom Design Available
Input Voltage & Frequency 90VAC~264VAC, 47~63HZ
Maximum AC Current Please refer to the specification datasheet for approval
Input Inrush Current 40A(RMS) Max, full load tested @AC230V 50HZ
Efficiency VI Custom Design Available
Protection OVP,OCP,OTP,SCP & Input Protection
Environmental requirements Operating Temperature 0~40 ℃,
Storage Temperature -40~70 ℃
Operating Humidity 5%~90% Non-condensing
Storage Humidity 5%~90% Non-condensing
Reliability Warranty 2 year (about 2.28 years for 24-hour-operation a day) Custom Design Available
MTBF >20,000 hour
Insulation Resistanc > 30MΩ@500VDC; 60S Custom Design Available
Hi-Pot Meet different safety standard
Leakage Current 0.25mA Max, full load tested @AC230V 50HZ
Compliance with EU directives law & regulations RoHS,REACH,PAHS
Safety Standard Certificate UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR Custom Design Available
Standards IEC61558/IEC60335/IEC61347/ETL1310/ IEC62368,GB4943, GB4706,etc... Custom Design Available
EMC Part 15  compliance
ESD (Air discharge@ 8KV, Contact discharge@ 6KV,(IEC61000-4-2) Custom Design Available
Surge ±1KV @ common or different mode Custom Design Available









Optional Plug:UL /GS/BS/SAA/CCC/PSE/EAC



UL Approve Open Frame Switching Power Supply 12V 3.75A With 2 Pin Socket 0

UL Approve Open Frame Switching Power Supply 12V 3.75A With 2 Pin Socket 1






UL Approve Open Frame Switching Power Supply 12V 3.75A With 2 Pin Socket 2



Safety Standard



IEC61558/IEC60335/IEC61347/ETL1310/ IEC62368,GB4943, GB4706,etc...



FAQ





1.Why choose us?

We are one-stop solution for high quality power adapter & switching power supply.
Fomerly as a wholly-owned subsidiary of "Dongguan Gangqi Group" which R&D & manufacture power adapters since 2004.


2.What safety certificate do you have?

We got safety standards inculding but not limited to
UL/ETL/FCC/CE/ GS/UKCA/ PSE/ KC/ SAA/ EAC/BIS/ICBR,NOM etc.





3.How about sample? For free?
Yes, Generally we offer 3-5PCS samples for your test FOR FREE, delivery cost collect.



4.How long can we get samples?
3 ~ 5 days for regular adapters or led driver.
And 20-25 work days for mass production.





5.Do you accept OEM/ODM service? Can I have my own logo on the adapter?
Yes, OEM or ODM is available.



6. What Customers you company have Served?
Customer groups include well-known brand companies especially in small household appliances & Led lighting industry such as
Shark,invitop,Wilit, Interplus,ELECTROLUX,LG,Xiaomi,Haier,Midea,covering many countries and regions around the world.



7. Can you put my own logo for our order?
Yes, we can produce order with your own logo/brand, Once we get your authorization license of the trademark.



8.How about the warranty of your product?
Generally we offer 2-year warranty(about 2.28 years for 24-hour-operation a day) for adapters and led drivers.
Quality is the most important for long-term business partnership,
and it is also our company aim to offer high quality and guaranteed products to help our clients grow business and expand their target markets.





9.How can I get detailed specifications about this product? Do you have catalogue and price list?
Basically, specifications,& price are vary,because each customer requires different adatpers model for different adaptability to products
Welcome to contact us for further cooperation via any contact ways at anytime!



10.What is shipping method?
Samples will be sent via DHL, UPS, FedEX, TNT, EMS, etc. while bulk goods will be sent by sea or air.
If you have familiar forwarders in China, we can send our goods there to save your cost.
